Language:
IBM Proprinter, Epson LQ-2500 Speed: Draft-Elite 192 CPS, Draft-Pica 160 CPS, LQ-Elite 63 CPS, LQ-Pica 53 CPS Graphics: 60, 180, 360 DPI No. of Pins: 24 |
Internal Fonts
Typeface | Quality | Pitches | Highlight |
Draft | Draft | 10 | Double High |
Courier | LQ | 12 | Double wide |
Prestige | LQ | 15 | Double Strike |
Bold PS | LQ | 17 | Emphasized (Bold) |
Sans Serif | LQ | PS | Overline |
Script | LQ | 20 | Underline |
Tractor Feed method:
Bottom and front pull-tractor feed.
Optional Feeders: Cut sheet feeder (Part # KX-P36)
Continuous Feeding
Loading fanfold paper (pull-tractor feed)
1. Make sure that the head gap lever position is appropriate to the type of paper being used.
2. Remove the top cover and smoked plastic cover.
3. Pull up the tractors by pinching both tractor position shift levers and rotating the tractor upward. As you lift, release the rear levers, continue lifting until tractors snap into place.
4. Unlock the tractors by pulling forward on the tractor clamping levers. Slide the tractors out towards the sides and raise the tractor covers.
5. Verify that the paper feed selector is in the "T PULL" position.

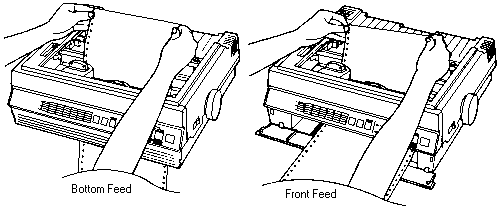

6. Insert the continuous fanfold paper through bottom slot and pull it up as shown. (You can also insert the continuous fanfold paper through the front of the printer.
7. Align the paper sprocket holes with tractor pins and close tractor covers. Make sure the paper is straight.
8. Visually insure the tractor pins are in the center of the paper sprocket holes.
9. Align the paper horizontally without any slack, by using the marks on the rear cabinet as a guide. The printer will print between 0 and 80 on the scale.
10. Align the center paper support so that it is centered between the tractors.
11. Press back on the tractor clamping levers locking the tractors in place.
12. Rotate the platen know or use the [LF] switch to adjust the paper so that it is at the desired first print position.
13. Turn the power off, wait a moment then turn the power on to set top of form.
14. Replace the top cover so that it is totally forward.
15. Replace the smoked plastic cover, inserting front first.
16. Verify that the printer is ON LINE to enable printing.
Loading fanfold paper (push-tractor feed)
1. Make sure that the head gap lever position is appropriate to the type of paper being used.
2. Remove the top cover.
3. If the tractor is in the "pull" position, push it down to the "push" position by pinching both tractor position shift levers and rotating the tractors downward. Release the rear lever and continue rotating until the tractor snaps into place.
4. Unlock the tractors by pulling forward on the tractor clamping levers. Slide the tractors out toward the sides and raise the tractor covers.
5. Align the center paper support so that it is centered between the tracks.
6. Verify that the paper feed selector is in the "T PUSH" position.
7. Align the paper sprocket holes with tractor pins and close tractor covers.
8. Align the paper horizontally without any slack, by using the mark son the smoked plastic cover as a guide. The printer will print between 0 and 80 on the scale.
9. Press back on the tractor clamping levers locking the tractors in place.
10. Press the [FUNCTION] switch and the ON LINE indicator light will blink.
11. Press the [ON LINE] switch (MEMO LOAD) to load the paper to the first print line.
12. If you desire a different top of form, rotate the platen knob or use the [LF] switch or the MICRO LINE FEED function to position the paper at the desired top of form.
13. Replace the top cover. Slide the top cover toward the rear of the printer as shown.
14. Turn the power off, wait a moment, then turn the power on to set top of form.
15. Verify that the printer is ON LINE to enable printing.
Manual Feeding
1. Verify that the paper feed selector is in the "F" position.
2. Position the top cover to the rear of the printer.
3. Open the paper door and begin to insert the paper by using the paper guide. The side on which you wish to print should face up.
4. Continue to guide the paper until you feel resistance.
5. Press the [FUNCTION] switch and the ON LINE indicator light will blink.
6. Press the [ON LINE] switch (MEMO LOAD) to load paper to the first print line.
7. To align the paper horizontally or vertically, set the paper feed selector to the "T PULL" position. This releases the paper and allows the paper to be positioned manually as required. Set the selector back to "F" before printing.
Self Test
The printer has a self test feature which allows the user to test the printer independently of the computer. The mode is entered by turning on the power switch while pressing the [LF] switch. First, all ASCII characters will be printed in draft and all five LQ fonts in 10 CPI. Then they will be printed in draft mode for approximately 20 minutes. During this phase, you may change the font by pressing the [COLUMN] switch. (The change will not occur until the current line is finished.)
To release the self test mode, turn the power switch off.
EZ Set Operator Panel
This printer has seven
switches and Control Table on the EZ Set Operator panel. These
key switches allow you to select various important features and
functions of the printer by setting the Control Table.
Function Mode
To enter the Function mode, press the [FUNCTION] switch. The ON LINE indicator light will start blinking.
In the Function mode, the EZ Set Operator panel switches have new functions as follows:
Panel Switch | Function |
[FUNCTION] | Enter or exists the Function mode. |
[LF] | Moves
the carriage toward right (when the Control Table is in
the RIGHT/LEFT MARGIN position). Sets the MACRO #1, 2 or 3 write mode (when the Control Table is in the MACRO #1, 2 or 3 position). Not operational when the Control Table is not in the above mentioned positions (If pressed, error sound will occur). |
[FF] | Moves
the carriage toward left (when the Control Table is in
the RIGHT/LEFT MARGIN position). Set the MACRO #1, 2 or 3 read mode (when the Control Table is in the MACRO #1, 2 or 3 position). Not operational when the Control Table is not in the above mentioned positions (If pressed, error sound will occur). |
[ON LINE] | MEMO LOAD (will load paper if paper is not installed or will "park" paper is paper is installed). |
[SET] | Sets
and/or releases current Control Table position. Performs the read or write of the MACRO #1, 2 or 3. Prints the current setting condition of the Control Table when the R1, R2 and R3 indicators are all ON. |
[COLUMN] | Advances to the next column position on the Control Table. |
[ROW] | Advances to the next row position on the Control Table. |
Setting the Control Table

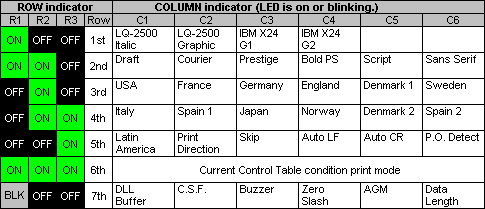

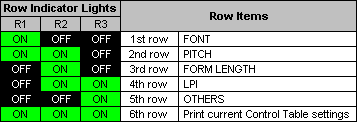

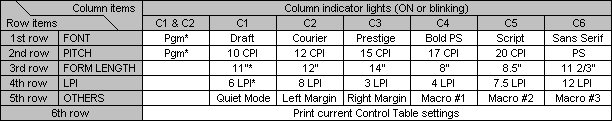

In the Function mode, the Row indicator lights R1, R2 and R3 and Column indicators lights C1-C6 on the EZ Set Operator panel indicate the Control Table conditions as follows:
* indicates initial setting when shipped.
Initial Setup Mode
The printer allows the user to select the following 14 Initial Setup mode conditions. This replaces conventional DIP switches.
- Printer emulation mode and character set mode.
- Default print font mode
- International character set mode
- Print direction (Image print) mode
- Ski perforation mode
- Automatic Line Feed mode
- Automatic CR mode
- Paper Out Detector mode
- Download button control mode
- Cut Sheet Feeder mode
- Buzzer sound control mode
- Zero font mode
- Alternate Graphic mode (AGM)
- Data length
The mode is entered by turning on the power switch while pressing the [FUNCTION] switch. The ON LINE indicator will start blinking. This indicates the printer is in the Initial Setup mode.
In the Initial Setup mode, you can set the Initial Setup condition by using the [ROW], [COLUMN], [SET] and [FUNCTION] switches on the front panel as follows:
[ROW] switch
When the [ROW] switch is pressed, the row position will advance sequentially from 1st to 7th. The column indicator lights C1-C6 shows the current setting for that row.
ON=light is lit, BLK=light is blinking, OFF=light is out
[COLUMN] switch
When the [COLUMN] switch is pressed, the column position will advance sequentially and the indicator lights C1-C6 will be lit (when the current mode position is set) or blinking (when the current mode position is not set).
[SET] switch
To adjust the Initial Setup mode, use the [ROW] and [COLUMN] switches to identify the option to be changed. There are two types of selection: individual and group. Pressing the [SET] switch for an "individual" cell toggles between ON (the column indicator light is steady) and OFF (the light blinks) conditions. To keep the current setting, simply go to a different option. The group type works in conjunction with other cells all of which are mutually exclusive (if one is YES, all others must be No). Font choices, for example, are of this type. Since only one font can be current, when one is chosen (YES-column indicator light is lit), all others are "deselected" (No-lights are OFF). Advancing the column setting will cause the column indicator light to blink at each alternate choice. Press the [SET] switch for such a choice selects that choice and turns the previous setting OFF.
Press the [FUNCTION] switch to return to the normal mode.
Default Initial Setup Settings
Emulation mode | Epson LQ-2500 Italic Character set |
Default Font | Draft |
Int'l char. set | USA |
Print Direction | ON (Unidirectional printing)_ |
Skip perforation | OFF (No skip) |
Automatic Line Feed | OFF (CR only) |
Automatic CR mode | ON |
Paper Out Detector | ON |
Download buffer | OFF |
Cut Sheet Feeder | OFF |
Buzzer Sound | ON |
Zero font mode | ON |
Alternate Graphic mode | OFF |
Data length | 8 |
The interface connector is located on the back of the printer towards the left side.
Parallel
Availability: Standard
Connection: Centronics
Serial
Availability: Optional
Connection: RS-232C
