KX-P2023

Language: IBM Proprinter X24E, Epson LQ-850 Speed: Font Draft LQ Micron 240 CPS 80 CPS Elite 192 CPS 64 CPS Pica 160 CPS 53 CPS Graphics: 60, 180, 360 DPI No. of Pins: 24

Panasonic KX-P2023 Fonts

Internal Fonts

Panasonic KX-P2023 Paper Handling

Tractor Feed method: Rear feed tractor and friction

Optional Feeders: Cut sheet feeder

Fanfold Paper (Tractor Push Mode)

1. Turn the power on. The PAPER OUT indicator will flash indicating that paper is not installed in the printer.
   Adjust the head gap lever for the thickness of paper you are using.

2. Set the paper feed selector to the tractor position.

3. Fold the smoked plastic cover forward. Remove the top cover.

4. Unlock the tractors by pulling the tractor clamping levers forward. Slide the tractors to accomodate the approximate width of the paper being used. In most applications, you will find that the 0 indicator on the tear bar is a useful tool for predetermining your left most print position.

5. Open the tractor covers.

6. Align the paper sprocket holes with the tractor pins making sure the paper is straight. Close the tractor covers.

7. Adjust the tractors to remove any slack. Lock the tractor clamping levers.

8. Press LOAD/PARK. This will load the paper to the first print line. NOTE: Do not use LF/FF to load paper.

9. Replace the top cover and the smoked plastic cover.

10. If the ON LINE indicator is not lit, press ON LINE to get ready to print.


Single Sheets and Envelopes (Friction Feed)

1. Turn the power on. The PAPER OUT indicator will flash indicating that no paper is installed in the printer. Adjust the head gap lever for this thickness of paper you are using.

2. Set the paper feed selector to the single sheet position.

3. Fold the smoked plastic cover forward. Raise the top cover to the single sheet feed position. This is done by inserting the side pins of the top cover into the slots on the upper cabinet.

4. Rotate the paper support. Separate the paper guides to the approximate width of your paper or envelope.

5. Replace the smoked plastic cover. Insert a sheet of paper through the paper guides and behind the platen. The paper will be automatically loaded to the first print line.

6. If the ON LINE indicator is not lit, press ON LINE to get ready to print.

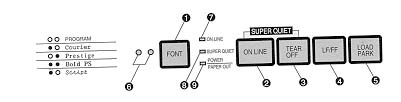

Panasonic KX-P2023 Settings

1. FONT switch
   Pressing this switch will select the font style.
2. ON LINE switch
   This switch opens and closes the communication line with the computer.
3. TEAR OFF switch
   Pressing this switch will advance or reverse the paper for tearing off.
4. LF/FF switch
   Pressing this switch advances the paper one line at a time. Holding this switch advances the paper to the first print line of the next page.
5. LOAD/PARK switch
   Pressing this switch will load or park the paper.
6. FONT indicators
   These indicators identify which Font has been selected.
7. ON LINE indicator
   This indicator is lit when the printer is in the ON LINE mode, and is out in the OFF LINE mode.
8. SUPER QUIET indicator
   This indicator is lit when the printer is in the SUPER QUIET mode. (While pressing the ON LINE switch, press the TEAR OFF switch.)
9. POWER/PAPER OUT indicator
   This indicator is lit when the power is on and paper is installed. It blinks when paper is not installed.

Panasonic KX-P2023 Interfaces

Parallel

Availability: Standard

Connection: Centronics

Activation: Default
