Laser Printer KX-P4450
Laser Printer KX-P4450
 |
Language:
PCL Level 4, IBM Proprinter, Epson, Diablo 630, Panasonic
KX-P1092i Speed: 11 PPM Memory: 512 KB Graphics: 300, 150, 75 DPI Autorotate: Yes Duplex: Yes RET: Not Available |
Fonts Per Page: 16 (Each attribute is a separate font)
Internal Fonts
| Typeface | Point | Pitch | Style | Weight | Symbol Set | Orientation |
| Courier | 6 | 20 | * | Medium | Roman-8 | P/L |
| Courier | 7.2 | 16.66** | Upright | Medium | Roman-8 | P/L |
| Courier | 7.2 | 16.66** | Italic | Medium | Roman-8 | P/L |
| Courier | 8 | 15 | Upright | Medium | Roman-8 | P/L |
| Courier | 8 | 15 | Italic | Medium | Roman-8 | P/L |
| Courier | 10 | 12 | Upright | Medium | Roman-8 | P/L |
| Courier | 10 | 12 | Italic | Medium | Roman-8 | P/L |
| Courier | 12 | 10 | Upright | Medium | Roman-8 | P/L |
| Courier | 12 | 10 | Italic | Medium | Roman-8 | P/L |
| Century 702 | 10 | PS | Upright | Medium | Roman-8 | P/L |
| Century 702 | 10 | PS | Italic | Medium | Roman-8 | P/L |
*for super/subscript in EPSON, IBM, and Panasonic modes for elite compressed in EPSON mode
**17 cpi for EPSON and IBM modes.
Font Test

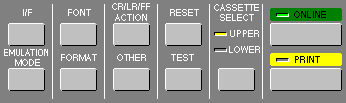

This Printer does not have the ability to perform an Internal Font Test. However, the user can identify which fonts the printer is using by pressing the [FONT] key on the front panel. If the LCD display reads RESIDENT, the printer is accessing the internal fonts as listed above. If the LCD display reads FONT CARD the printer is accessing an external font card.
Optional Fonts
Unprintable Regions
Left: 50 dots (1/6")
Right: 100 dots (1/3")
Top: 60 dots (1/5")
Bottom: 60 dots (1/5")
Continuous Feeding
Standard Tray: 2 Continuous Paper cassettes [capacity: 250 sheets each]
Optional Trays: Legal
Envelope

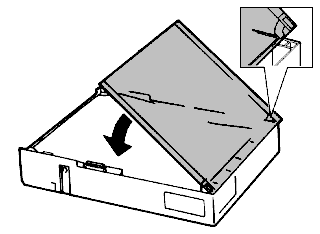

Loading paper into paper cassette
1. Remove the paper cassette from paper.
2. Remove the paper cassette cover.
3. Fan the stack of paper, place it in the paper cassette and push it under the clips.
4. Install the paper
cassette cover.
5. Insert the paper cassette
into the printer until it is firmly in place.
Manual Feeding
There is no manual Feed option available for this printer
| Message | Meaning | Resolution |
| U10 PAPER EMPTY | In automatic paper feed mode, both upper and lower cassettes are empty or no cassettes are installed. | Load paper and install cassette. |
| U11 UPPER PAPER OUT | In automatic paper feed mode or upper cassette paper feed mode, the upper cassette is empty or not installed. | Load paper and install the upper cassette. |
| U12 LOWER PAPER OUT | In automatic paper feed mode or Lower cassette paper feed mode, the lower cassette is empty or not installed. | Load paper and install the lower cassette. |
| U13 NO ENV CAS | Printer requires envelope cassette | Load envelope #10 for manual feed. |
| U14 LEGAL CAS | Printer requires legal format. | Load legal cassette or force printing by the ON LINE key. |
| U15 NO LETTER CAS | Printer requires letter format. | Load letter cassette or force printing by the ON LINE key. |
| U16 NO B5 CAS | Printer requires B5 format | Press ON LINE key. |
| U17 NO A4 CAS | Printer requires A4 format | Press ON LINE key. |
| U20 ADD TONER | Toner is below the upper level in the hopper unit. | Add Toner. |
| U21 ADD TONER | Too many copies tried with "ADD TONER U20" displayed. | Add Toner. |
| U22 TONER CHARGING | A low toner condition is detected and toner is being supplied. | Automatic recovery. |
| U23 CHECK TONER CUP | Toner disposal bottle is not installed or must be replaced. | Install or replace toner disposal bottle. |
| U24 DRUM MISSING | Drum unit is not installed. | Install drum unit. |
| U25 NO DEV UNIT | Developer unit is not installed. | Install developer unit |
| U26 CHANGE DEV UNIT | Developer unit requires replacement | Install new developer unit |
| U27 CHANGE DRUM | Drum unit requires replacement. | Install new drum. |
| U28 TONER CUP FULL | Toner disposal bottle is full. | Install new toner disposal bottle. |
| U30 DOOR OPEN | Top cover is open | Close top cover |
| U31 CHECK PRINT JOB | Laser control circuitry or periphery received an error (LYSNC long, Video open, LSYNIC short). | Press ON LINE key. |
| U32 FONT NOT AVAIL | Font card is not installed when requested. | Install font card. |
| U33 NO FONT CARD | Font card is removed in ON LINE mode. | Power off then on. |
| U34 RESEND JOB | Communication error is detected in the RS-232C interface during receive. Error 1 byte is changed to * mark. | Press ON LINE key twice |
| U35 LINE OVERFLOW | Receive buffer overflow. | Power off then on. |
| U36
MEMORY OVERFLOW |
Page overflow, image overflow, or download overflow has occurred. | Press ON LINE key. |
| U37 PAGE FORMATING | Overrun has occurred. | Press ON LINE key. |
| U38 RE-ENTER FORMAT | Format commands are not correctly input from FORMAT key. | Reset format |
| U39 RE-ENTER RS232C | RS-232C protocol setting is not correctly input from I/F key. | Reset Protocol |
| U40 TURN OFF & ON | Connector is inserted to video interface at power on. | Power off then on. |
The interface connectors are located on the back of the printer towards the upper left corner.
Parallel
Availability: Standard
Connection: Centronics Female
Activation: Through front panel menu
Serial
Availability: Standard
Connection: Serial RS-232C Female connector
Activation: Through front panel menu
