QMS PS-3200

Language: PCL Level 4, PostScript, HPGL/2

Speed: 32ppm

Memory: 16MB Standard, 64MB (Total Optional)

Graphics: 300

Autorotate: Yes

Duplex: Optional

RET: Not Available

QMS PS-3200 Fonts

Internal PCL Fonts

Typeface	Size	Variation	Orientation	Symbol Set
Courier	12 pt. (10 pitch)	Medium Upright	P & L	Roman -8
				PC-8
		Medium Upright	P & L	IBM-DN
				ECMA-94
		Bold Upright	P & L	Roman-8
				PC-8
		Bold Upright	P & L	IBM-DN
				ECMA-94
Line Printer	8.5 pt. (16.67 pitch)	Medium Upright	P & L	Roman-8
				PC-8
				IBM-DN
				ECMA-94

Internal Postscript Fonts

Typeface	Size	Variation	Orientation	Symbol Set

Times-Roman	Scalable	Plain	P & L	Adobe PS
	Scalable	Roman Italic	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS

Courier	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Bold Oblique	P & L	Adobe PS

Palatino	Scalable	Roman	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Italic	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS

New Century Schoolbook	Scalable	Plain	P & L	Adobe PS
	Scalable	Italic	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS

ITC Bookman	Scalable	Light	P & L	Adobe PS
	Scalable	Light Italic	P & L	Adobe PS
	Scalable	Demi	P & L	Adobe PS
	Scalable	Demi Italic	P & L	Adobe PS

ITC Zapf Chancery	Scalable	Medium Italic	P & L	Adobe PS

Adobe Garamond	Scalable	Plain	P & L	Adobe PS
	Scalable	Italic	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS
	Scalable	Semi	P & L	Adobe PS
	Scalable	Semi Bold Italic	P & L	Adobe PS

Helvetica	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Bold Oblique	P & L	Adobe PS

Helvetica Condensed	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Condensed Bold Oblique	P & L	Adobe PS

Helvetica Narrow	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Bold Oblique	P & L	Adobe PS

ITC Avant Garde	Scalable	Book	P & L	Adobe PS
	Scalable	Demi	P & L	Adobe PS
	Scalable	Book Oblique	P & L	Adobe PS
	Scalable	Demi Oblique	P & L	Adobe PS

Symbol	Scalable	Plain	P & L	Symbol

ITC Zapf Dingbats	Scalable	Plain	P & L	Dingbats PS

QMS PS-3200 Paper Handling

Unprintable Region

Letter:

Left: .17 in. Top: .17 in.

Right: .17 in. Bottom: .17 in.

Legal:

Left: .17 in. Top: .17 in.

Right: .17 in. Bottom: .17 in.

Note: Actual imageable area may vary depending on the application program and/or printer driver.

Continuous Feeding

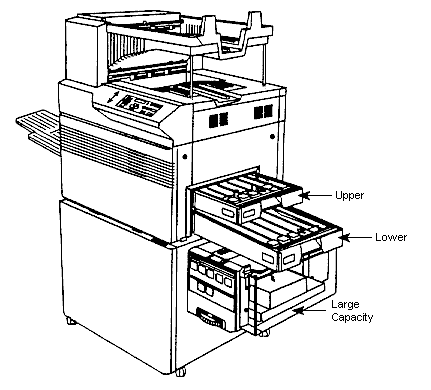

Standard Trays: Two 250-sheet bins; supports letter, legal, ledger, A4, 11x17"/A3, and B5.

Optional Trays: One 1000-sheet bin is optional (maximum size for bin is legal) Optional

Duplexing unit.

Adding Paper to the Input Bins

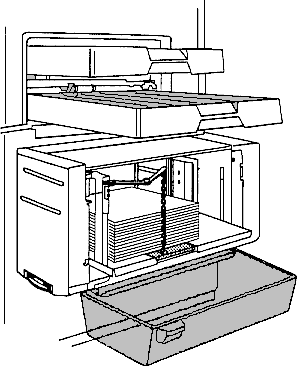

1. Grasp the sides of the bin and lift it slightly to pull it away from the printer. Set the bin on a level surface.

2. Raise the bin cover to its upright position and then lift it from the bin. Set the cover aside.

3. Gently tap up to 250 sheets of paper on the side of the stack to even them and then place the stack in the bin.

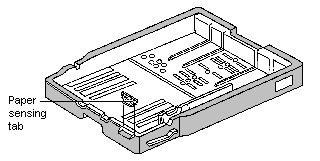

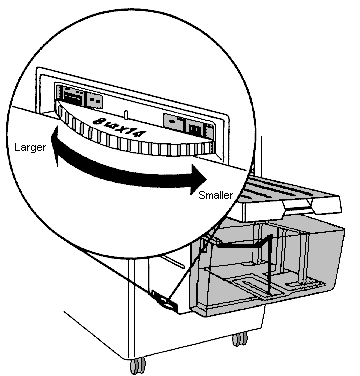

Note: Make sure that the size of paper you add matches the size selected on the metal page sensing tab located at the front of the input bin.

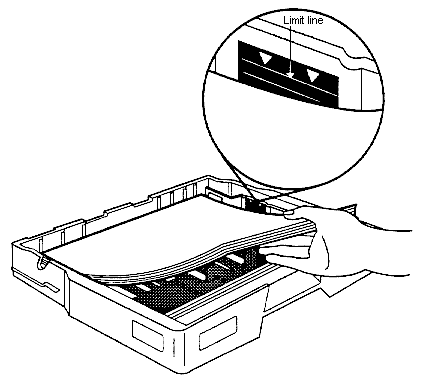

The paper jams if the paper is not matched properly. Also, do not load paper past the limit line on the paper bin. Overloading causes paper jams.

4. Replace the bin cover and re-insert the bin into the printer

Changing Input Bin Size

1. Loosen the three screws securing the back and side guides and remove the guides. Note: You may have to lift the bottom plate to remove the paper length guide.

2. Move the guides to the desired page size and secure each with a screw.

Note: Try not to change the paper guides more than necessary since this may strip the screws and cause fittings to become loose.

3. Select the appropriate metal page sensing tab (included in the accessory box) and place it in the tab holder.

Make sure the paper size and the size on the page sensing tab match. If not, irregular printing and paper jams occur.

4. Stick the appropriate page size decal to the side of the input bin.

Manual Feeding

Manual feeding is not a feature of the QMS PS-3200

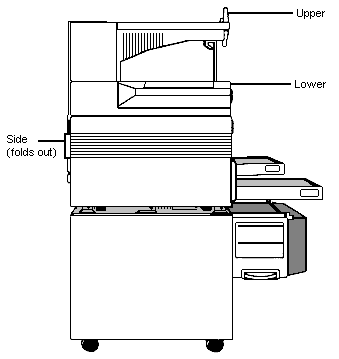

Paper Output

1,500 sheets, face down; Offset stacking is supported. 100 sheets, face-up.

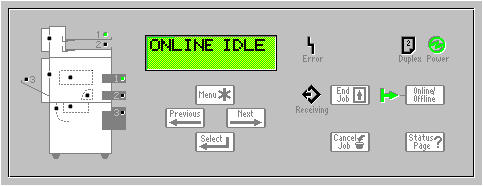

QMS PS-3200 Messages

Message	Meaning

TONER OUT	The engine's toner cartridge is empty.

ADJUST INPUTBIN BIN	The specified input bin is not inserted correctly or the cover is open

PUT SIZE PAPER IN INPUTBIN BIN	The selected input pin or paper cassette needs paper of the specified size.

OUTPUT BIN NUMBER FULL	The specified output bin is full.

ADJUST OUTPUTBIN NUMBER	The specified output bin is not set or the cover is open.

CLOSE ENGINE DOOR(S)	One or more of the front or side covers are open and must be closed.

INPUTBIN BIN JAM	Paper has jammed while being pulled from the specified input bin.

TRANSPORT JAM	Paper has jammed while passing through the engine.

DUPLEXER JAM	Paper has jammed while passing through the duplexer.

OUTPUTBIN NUMBER JAM	Paper has jammed between the printer engine and the specified output tray.

FUSER ABSENT	The fuser is missing from the engine.

DEVELOPER ABSENT	The developer unit is not installed.

OPC DRUM ABSENT	The OPC drum is missing from the engine.

CLEANER ABSENT	The cleaning unit is not installed.

DUPLEXER ABSENT	The duplexing unit is not present in the engine.

REPLACE OPC DRUM	The OPC drum must be replaced.

MAINTENANCE X DUE	Specific maintenance is due. Refer to (Chart below) to define the maintenance procedures that are to be conducted.

MAINTENANCE MESSAGE	MEANING

Maintenance1 Due	Appears at 100K pages Replace: - Main charger - T/S charger - Shield plate - Ozone filter - OPC drum Clean:

Maintenance2 Due	Appears at 320K pages Replace: - Developer unit - Fusing unit - Paper feed rollers Clean: - Inside of the drawer - Registration rollers and mylar - Transport belt - Bottom plate of printer

Maintenance3 Due	Appears at 2400K pages Replace: - Process fan unit - Registration roller unit

Toner Out	Appears at 15K pages Replace: - Toner cartridge Clean: - Quenching LED - Fusing unit - Separation pawl - T/S charger

Replace Cleaner	Appears at 30K pages Replace: - Cleaning unit

QMS PS-3200 Interfaces

Parallel

Availability: Standard

Connection: Choice of Centronics or Dataproducts

Activation: Simultaneous Interface Operation (SIO) - Allows all interfaces to be attached to host computers at the same time and receive data simultaneously

Serial

Availability:

Connection: 25-pin RS-232 Serial Cable

Activation: Simultaneous Interface Operation (SIO) - Allows all interfaces to be attached to host computers at the same time and receive data simultaneously

AppleTalk

Availability: Standard

Connection: AppleTalk/LocalTalk

Activation: Simultaneous Interface Operation (SIO) - Allows all interfaces to be attached to host computers at the same time and receive data simultaneously

EtherNet

Availability: Optional (

Connection: Direct connectivity to Ethernet networks using DECnet, TCP/IP, EtherTalk, or NetWare protocol

Activation: Simultaneous Interface Operation (SIO) - Allows all interfaces to be attached to host computers at the same time and receive data simultaneously

Additional Hardware

Floppy Drive - 1.44 MB, 3.5 inch floppy drive allows users to download fonts and/or emulations into printer's RAM or onto optional hard disks.

QMS SCSI Hard Drives (Optional) - 40 and 120 MB internal hard drives and 20 and 45 MB external hard drives extend system memory for increased job spooling, collating, and font caching capabilities. The also provide permanent storage of downloadable typefaces, emulations and PostScript programs. One internal and up to six external hard drives can be attached to the printer's SCSI connection.

Networking Solutions - Direct connectivity to Ethernet networks using DECnet, TCP/IP, EtherTalk, or NetWare protocol.
