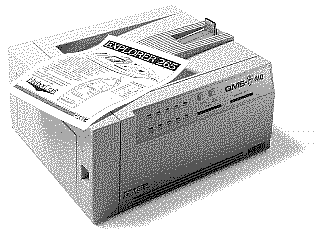

PS-410

Language: PCL Level 4, PostScript

Speed: 4ppm

Memory: 2MB Standard, 6MB Optional

Graphics: 300dpi

Autorotate: Yes

Duplex: Not Available

RET: Not Available

QMS PS-410 Fonts

Internal Fonts (HP PCL 4)

Typeface	Size	Variation	Orientation	Symbol Set

Courier (Courier)	Scalable	Plain, Bold	P & L

Helvetica (Helv)	Scalable	Plain, Bold	P & L

Times (Tms Rmn)	Scalable	Plain, Bold	P & L

Internal Fonts (Postscript)

Typeface	Size	Variation	Orientation	Symbol Set

Times-Roman	Scalable	Plain	P & L	Adobe PS
	Scalable	Roman Italic	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS

Courier	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Bold Oblique	P & L	Adobe PS

Palatino	Scalable	Roman	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Italic	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS

New Century Schoolbook	Scalable	Plain	P & L	Adobe PS
	Scalable	Italic	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS

ITC Bookman	Scalable	Light	P & L	Adobe PS
	Scalable	Light Italic	P & L	Adobe PS
	Scalable	Demi	P & L	Adobe PS
	Scalable	Demi Italic	P & L	Adobe PS

ITC Zapf Chancery	Scalable	Medium Italic	P & L	Adobe PS

Adobe Garamond	Scalable	Plain	P & L	Adobe PS
	Scalable	Italic	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Bold Italic	P & L	Adobe PS
	Scalable	Semi	P & L	Adobe PS
	Scalable	Semi Bold Italic	P & L	Adobe PS

Helvetica	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Bold Oblique	P & L	Adobe PS

Helvetica Condensed	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Condensed Bold Oblique	P & L	Adobe PS

Helvetica Narrow	Scalable	Plain	P & L	Adobe PS
	Scalable	Bold	P & L	Adobe PS
	Scalable	Oblique	P & L	Adobe PS
	Scalable	Bold Oblique	P & L	Adobe PS

ITC Avant Garde	Scalable	Book	P & L	Adobe PS
	Scalable	Demi	P & L	Adobe PS
	Scalable	Book Oblique	P & L	Adobe PS
	Scalable	Demi Oblique	P & L	Adobe PS

ITC Zapf Dingbats	Scalable	Plain	P & L	Dingbats PS

Symbols	Scalable	Plain	P & L	Symbol

QMS PS-410 Interfaces

The interfaces for the QMS PS-410 are located on the back side of the printer near the top.

Parallel

Availability: Standard

Connection: High-speed parallel

Activation: Simultaneous Interface Operation (SIO) - Allows all three interfaces to be attached to host computers at the same time and receive data simultaneously

Serial

Availability: Standard

Connection: RS-232-C serial

Activation: Simultaneous Interface Operation (SIO) - Allows all three interfaces to be attached to host computers at the same time and receive data simultaneously

AppleTalk

Availability: Standard

Connection: 9 pin AppleTalk/LocalTalk

Activation: Simultaneous Interface Operation (SIO) - Allows all three interfaces to be attached to host computers at the same time and receive data simultaneously

QMS PS-410 Paper Handling

Unprintable Region

Letter:

Left: .25 in. Top: .25 in.

Right: .25 in. Bottom: .25 in.

Legal:

Left: .5 in. Top: .5 in.

Right: .5 in. Bottom: .5 in.

Continuous Feeding

Standard Tray: With this model, the standard tray is a multi-purpose bin.

The standard tray can use the following paper sizes:

Letter, 8 1/2" x 11"

Legal, 8 1/2" x 14"

A4, 210mm x 297mm

B5, 182mm x 257mm

Executive, 7 1/4" x 10 1/2"

Envelope can also be accommodated with the multi-purpose trays, the minimum sizes the QMS PS-410 supports is 3 1/2" x 7" (86mm x 178mm). The maximum size is 7 2/5" x 10 1/2" (188mm x 267mm).

Optional Trays: Letter (250 sheets)

Legal (250 sheets)

Note: optional trays can be attached to the bottom of the unit. Use

Note: Actual imageable area may vary depending on the application program and/or printer driver.

Note: printing from the Macintosh requires Larger Print Area (Fewer Downloadable Fonts) to be checked in Page Setup (Options) The IBM PC (or compatible) takes advantage of the larger imageable area automatically.

Manual Feeding

Manual feed is the "by hand" method of feeding paper. It is very useful for:

Overlay printing

Double-sided printing

Heavy-weight papers and envelopes

Manual feed makes it possible to feed individual sheets of paper of other material (envelopes and transparency stock) into your printer. Paper weight can range from 16 pound to 35 pound.

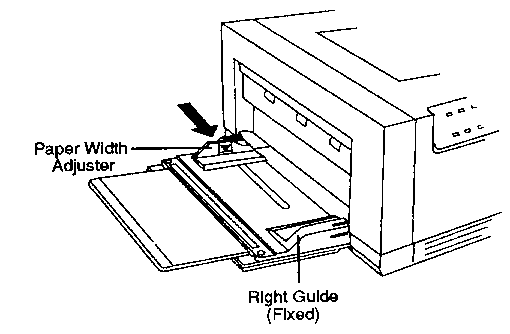

Manually Feeding Paper To feed paper by hand from the standard tray:

1. Set the paper guides on the standard tray to the size of the paper you are using.

2. Feed the sheet of paper between the paper guides face up, top edge first.

To feed paper by hand if you have an optional lower tray:

1. Go into either your software application program and select manual feed (this is sometimes called feeder bin), or into the QMS PS Executive Series Utility program and select manual feed.

If you want to manually feed multiple pages, set your printer for manual feed through the print utility program or through PostScript command.

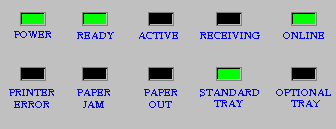

QMS PS-410 Messages

	Power (green) always displays when the printer power switch is in the "1" position and the printer is plugged into a power source.

	Ready (green) displays when the printer has warmed up or cleared errors, such as a paper jam, and is ready to receive a print job.

	Active (green) lights when the printer is processing a job. The light goes off when the printer has completely processed a job.

	Receiving (green) When the printer is receiving data.

	Online/Offline (green) When the printer is online, this indicator glows green. However, when the online/offline button is pushed, the indicator goes out to indicate that the printer is offline. The light also goes out when a printer error occurs.

	Printer Error (amber) indicates and error that requires a power-off cycle or service intervention.

	Paper Jam (amber) lights to indicate that you must remove a paper jam from the printer. After clearing the jam and closing the paper path door, the paper jam indicator goes out.

	Paper Out (amber) lights when the selected paper tray is out of paper. It lights in conjunction with the indicator for the tray you selected: either the standard tray indicator or the optional tray indicator.

	Standard Tray (green) lights when the standard paper tray is being used. This is the factory default paper tray and is always on unless you change to the optional tray. The light blinks when the printer is put in manual feed mode.

	Optional Tray (green) only lights when you select the optional paper tray for use and paper is being drawn from that tray.

Active Light

After warming up, if the Active indicator stays on, two problems may exist. If you are downloading additional typefaces, too many can overload the printer's memory causing the printer to reset. If this is not your case, you may have a laser or engine failure, and you should place a service call to your QMS dealer.

Power Light

If the Power indicator is on, but no startup page prints, turn off the printer and check the following:

1. From a cold start, it takes a minute for the printer to warm up. Be sure you have waited long enough for a start up page before suspecting a problem.

2. Check to be sure the paper tray(s) is in place and not ajar.

3. Open the top section of the printer and check for a paper jam.

4. Make sure a toner cartridge is installed.

5. Check to see if you have disabled the start up page with the PS Executive Series Utility program. Go into the program and enable the start up page or try sending a file you know prints.

6. If none of the above problems are found, call your QMS dealer.

Printer Error

If the Printer Error light comes on:

1. Power the printer off and back on.

2. If upon powering up, the printer error light is still on: Make sure a toner cartridge is installed in the printer.

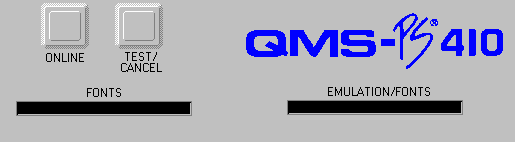

Push both the Test/Cancel button and the Online/Offline button simultaneously. {bmc look.bmp}mq410_pnl2

Note: Depressing both the Test/Cancel button and the Online/Offline button restores the printer to its factory defaults.

3. Contact your QMS dealer.
