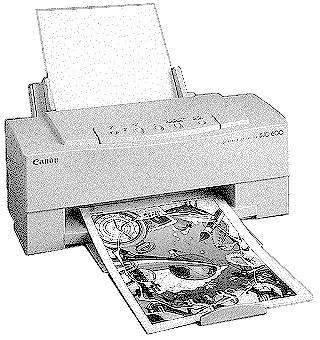

Bubble Jet BJC-600

Language: IBM Proprinter, Epson ESC/P

Speed: 170 CPS - Letter, 240 CPS - Draft

Graphics: 360 x 360 DPI

Color: Yes

Canon Bubble-Jet BJC-600 Fonts

Internal Fonts

Typeface	Pitches (BJC-10/IBM mode)	Pitches (Epson LQ mode)
Prestige	12 cpi in high quality mode only	10, 12, 15, 17, 20, proportional
Courier	10, 12, 17, proportional	10, 12, 15, 17, 20, proportional
San Serif	Not Available	10, 12, 15, 17, 20, proportional
Draft	Not Available	10, 12, 15, 17, 20, proportional
Roman	Not Available	10, 12, 15, 17, 20, proportional
Script	Not Available	10, 12, 15, 17, 20, proportional
Orator	Not Available	10, 12, 15, 17, 20, proportional
Orator-S	Not Available	10, 12, 15, 17, 20, proportional

Canon BubbleJet BJC-600 Paper Handling

Unprintable Regions

Left: .25 inch

Right: .25 inch

Top: .50 inch

Bottom: .30 inch

Continuous Feeding

Standard Feeders: One Paper Tray [capacity: 100 sheets or 10 envelopes ]

Envelope Feeding

1. Make sure the printer is turned on and on-line.

2. If you are using the Canon BJC-600 Windows driver, skip this step. Otherwise, turn on the envelope mode. Press the on-line button to set the printer off line. Press the Paper Select button until both the envelope light and the thick light are one. Press on-line to set the printer back on-line

3. Make sure the green paper thickness lever on the inside of the printer is set to the up position.

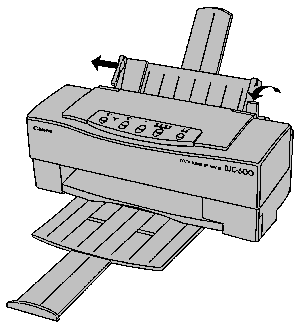

4. Set the paper selection lever to the forward position and move the paper guide to the left to match the width of the envelopes.

5. Arrange the stack of envelopes on a firm surface and press down firmly on the edges to make the folds crisp. Press all the way around the envelopes to remove any curls and expel air from inside the envelopes.

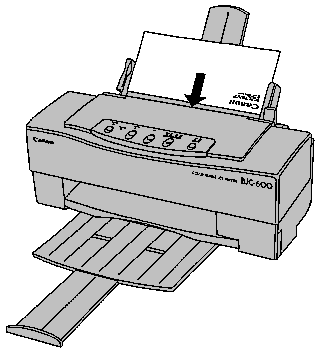

6. Align the stack of envelopes with the right edge of the sheet feeder, and slide in the stack until it stops.

7. Adjust the paper guide to the stack of envelopes.

8. Print from your application.

After printing on envelopes, follow these steps before printing on normal paper again:

1. Set the paper selection lever (on the right side of the sheet feeder) to the back position.

2. Set the green paper thickness lever (inside the printer) to the down position.

3. If you enabled the envelope mode, disable it now. Make sure the printer is off-line; then press the Paper Select button until the envelope light goes out. Press the on line button to set the printer back on line.

Canon BubbleJet BJC-600 Messages

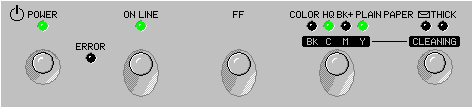

Keypad Display	Cause	Solution
Error light is on steady	Paper error	Check the sheet feeder. If the printer is out of paper, load paper into the sheet feeder and press On line to continue printing.Check the printer for a paper jam. If a paper jam has occurred, clear it.

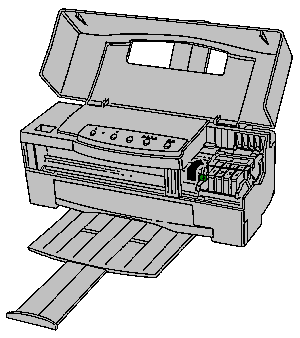

Error light is on steady and Print Mode, Envelope or Thick lights blinking	Ink cartridge out	Replace the ink cartridge that corresponds to the flashing print mode light. If the cartridge is not empty, perform a single-head cleaning procedure for that ink cartridge.
Error light is on steady and Envelope and Thick lights are flashing but no print mode light flashing	Ink Tank is almost full	Contact Canon authorized repair center
Error light is flashing and envelope and thick lights are flashing	Print head error	Make sure the print head unit is correctly installed and the compartment cover is securely closed. Turn off the printer and unplug it. Wait at least four seconds, plug the printer back in, and turn it on. If the problem still exists, write down the status of each light. Call the Canon help desk at 1-800-423-2366.
Error light is flashing and no other lights flashing		Some other type of error has occurred. Turn the printer off, wait four seconds, and turn it back on. If the problem still exists, write down the status of each light. Contact Canon at 1-800-848-4123 and ask for the telephone number of your local Canon Authorized Service Facility.

Canon BubbleJet BJC-600 Settings

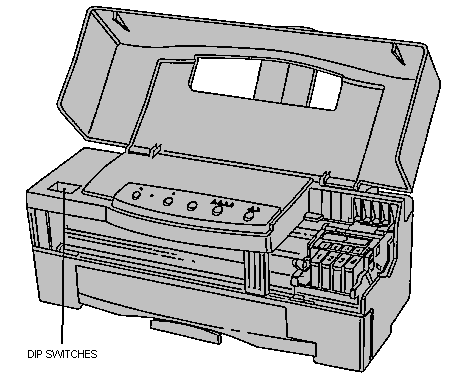

The printer functions defined by the DIP switches are determined by the printer control mode. DIP switch 12 selects the printer control mode. When DIP switch 12 is OFF, the printer is in BJC-10 mode; when DIP switch 12 is on, the printer is in Epson LQ mode.

Epson LQ Mode

Horizontal Print Position Letter or envelope
