LaserWriter Pro 600/630
LaserWriter Pro 600/630
 |
Language:
PostScript, PCL Level 5 Speed: 8ppm Memory: 4MB (600)8MB (630)32MB maximum Graphics: 300, 600dpi(PhotoGrade available on 630) Autorotate: Yes Duplex: Not Available RET: Apple FinePrint |
Fonts Per Page: Limited only by available printer memory. (Each attribute is a separate font)
Internal PostScript Fonts
| Typeface | Size | Variation | Symbol Set |
| ITC Avant Garde® | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| ITC Bookman® | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Courier | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Helvetica® | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Helvetica Narrow | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| New Century Schoolbook | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Palatino® | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Symbol | Scalable | plain | Symbol |
| Times® | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| ITC Zapf Chancery® | Scalable | plain | Zapf Chancery |
| ITC Zapf Dingbats® | Scalable | plain | Dingbats |
TrueType Fonts Included with Printer
| ITC Garamond® Narrow | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Helvetica Compressed | Scalable | plain and italic | Adobe PS |
| Helvetica® Black | Scalable | plain and italic | Adobe PS |
| Chicago | Scalable | plain | Chicago |
| Delphian | Scalable | plain | Adobe PS |
| Geneva | Scalable | plain | Adobe PS |
| ITC Lubalin Graph® | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| Lucida Bright | Scalable | plain, italic, bold, and bold-italic | Adobe PS |
| ITC Machine® | Scalable | plain | Adobe PS |
| Monaco | Scalable | plain | Adobe PS |
| Nadianne | Scalable | plain and bold | Adobe PS |
| New York | Scalable | plain | Adobe PS |
| Old English Text | Scalable | plain | Old English Text |
| Onyx | Scalable | plain | Adobe PS |
| Oxford® | Scalable | plain | Adobe PS |
| Swing | Scalable | plain | Adobe PS |
| Zeal | Scalable | plain | Zeal |
Font Test
To generate a Test Page or a list of fonts in any PostScript printer, run the Apple LaserWriter Utility that comes with the system software.
Unprintable Regions
| Letter:
Left: .25 in. Top: .25 in. Right: .25 in. Bottom: .25 in. Legal: Left: .5 in. Top: .5 in. Right: .5 in. Bottom: .5 in. |
 |
Continuous Feeding
Standard: LaserWriter
Pro 250-Sheet Universal Cassette
100-Sheet Multi-Purpose Tray (10 envelopes, 75
labels/transparencies)
| Optional: | Item | Part Number |
LaserWriter

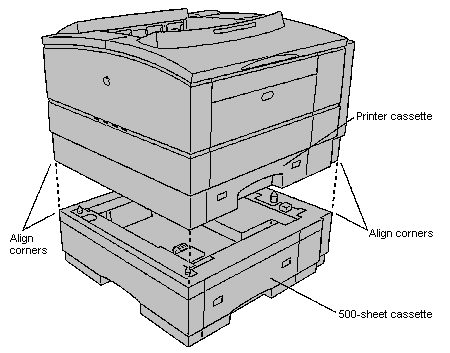

Pro 500-Sheet Feeder  |
M6550G/A | |
| LaserWriter Pro 500-Sheet Universal Cassette | M5862G/A | |
| LaserWriter Pro 250-Sheet Universal Cassette | M6525G/A | |
| LaserWriter Pro Envelope Feeder | M6510G/A |
Manual Feeding
You can use the multipurpose tray for all of your printing jobs. You can keep a small stack of paper in the multipurpose tray and let the LaserWriter Pro feed the paper automatically, or you can use the multipurpose tray for manual-feed printing.
1. Push gently on the small indentation at the top of the tray and then lower the tray slowly.
2. Use the extension to adjust the tray so that your paper does not extend over the edge.
3. Place the stack of paper in the tray.
The lights indicate a
problem
| Light | On | Off | Flashing |
| Ready/In
Use
|
Printer is ready to use. | Printer cannot print due to an error condition, or the cover is open. | Printer is warming up, printing a startup page, or processing data for the next print job. |
| Low
Toner Level
|
Toner is low or needs to be redistributed. | Toner level is OK. | Toner cartridge is installed incorrectly. |
| Paper
Out*
|
Paper cassette is empty. | Paper supply is OK. | Printer is ready for next sheet of manual-fed paper. Or printer may require service. |
| Paper
Jam*
|
There is a paper jam. | Paper is OK. | Printer requires service. |
*If the Paper Out and Paper Jam lights both flash, or if they both stay on, the printer requires service.

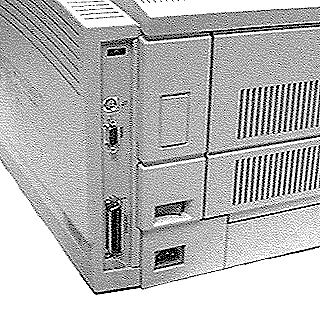

The interface connections
are located on the back right side of the printer.
Parallel
Availability: Standard
Connection: Centronics Female (36-pin)
Activation: Manual
Serial
Availability: Standard
Connection: 9-pin RS/232 or 8-pin RS/422 (via the port normally used for AppleTalk)
Activation: Manual
AppleTalk
Availability: Standard
Connection: 9 pin AppleTalk/LocalTalk
Activation: Automatic
Ethernet
Availability: Standard on LaserWriter Pro 630 only
Connection: Apple Ethernet interface
Activation: Automatic
The following table shows the communication settings in effect when the printer is new. The push-button switch on the printer's connector panel can be set to positions 0 through 9. Switch positions 0 through 5 are fixed, and the settings for these positions cannot be changed. Positions 6 through 9 are user-configurable; you can change the settings for these positions to match the needs of the computer you are connecting. "Available Settings," at the end of this appendix, lists all the options available for each setting.
From a Macintosh computer, you use the LaserWriter Utility program to display and change communication settings. From a computer other than a Macintosh, you can send PostScript commands to the printer to change the communication settings. Contact your Apple dealer or technical representative for assistance.
| Switch Position | Port Name | Type of connection | Baud Rate | Parity | Data Bits | Stop Bits | Flow Control | Protocol | Mode |
| 0 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -9600- | -None- | -8- | -1- | -XON/XOFF- | -Normal-Normal | PostScript PostScript PostScript PostScript |
| 1 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -9600- | -None- | -8- | -1- | -DTR- | -Raw-Raw | PostScript HP PCL 4 PostScript HP PCL 4 |
| 2 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -19200- | -None- | -8- | -1- | -XON/XOFF- | -Normal-Normal | PostScript PostScript PostScript PostScript |
| 3 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -9600- | -None- | -8- | -1- | -DTR- | -Raw-Raw | PostScript PostScript HP PCL 4 |
| 4 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -1200- | -None- | -7- | -1- | -XON/XOFF- | -Normal-Normal | PostScript PostScript PostScript PostScript |
| 5 | 8-pin/RS-422RS-232EthernetParallel | Serial Serial EtherTalk Centronics | 96009600- | None None- | 8-8- | 11- | XON/XOFFXON/XOFF- | Normal Normal-Normal | PostScript PostScript PostScript PostScript |
| 6 | 8-pin/RS-422RS-232EthernetParallel | Serial Serial EtherTalk Centronics | 1920019200- | None None- | 8-8- | 11- | XON/XOFFXON/XOFF- | Normal Normal-Normal | PostScript PostScript PostScript PostScript |
| 7 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -1200- | -None- | -8- | -1- | -ETX/ACK- | -Normal-Normal | PostScript PostScript PostScript PostScript |
| 8 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -1200- | -None- | -8- | -1- | -DTRF- | -Raw-Raw | PostScript HP PCL 4 PostScript HP PCL 4 |
| 0 | 8-pin/RS-422RS-232EthernetParallel | LocalTalk Serial EtherTalk Centronics | -9600- | -None- | -8- | -1- | -XON/XOFF- | -BSP-BSP | PostScript HP PCL 4 PostScript HP PCL 4 |
† Not arbitrated for input
Available Settings
The following table briefly describes the communication settings and lists the options available for each.
| Setting | Description | Options |
| Baud Rate | The speed of transmission between the computer and the printer | 300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600, 19200, 57600 |
| Parity | The method used to compare transmitted and received data to check for errors | None, odd, even, mark, space |
| Data Bits | The number of bits used to represent each character | 7, 8 |
| Stop Bits | The number of bits used to indicate the end of a character | 1, 2 |
| Flow Control | The method used to prevent transmitted data from exceeding the rate at which the receiving end can accept it. | XON, XOFF, DTR, ETX/ACK |
| Protocol | The digital format in which the data is presented | Normal, raw, binary |
| Mode | The page description standard used to transmit data | PostScript, HP Printer Command Language 4, and Nonprinting Input (not intended for a computer connection) |
