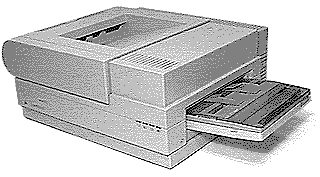

AppleLaserWriter IINT

Language: PostScript

Speed: 8ppm

Memory: 2MB

Graphics: 300

Autorotate: Yes

Duplex: Not Available

RET: Not Available

 FontsPaperMessagesInterfaces

Apple LaserWriter IINT Fonts

Internal Postscript Fonts

Typeface Size Variation Symbol Set

Times Scalable Roman, Italic, Bold, Bold Italic Adobe PS
Courier Scalable Plain, Bold, Oblique, Bold Oblique Adobe PS
Palatino Scalable Roman, Italic, Bold, Bold Italic Adobe PS
New Century Schoolbook Scalable Plain, Bold, Oblique, Bold Oblique Adobe PS
ITC Bookman Scalable Light, Light Italic, Demi, Demi Italic Adobe PS
ITC Zapf Chancery Scalable Medium Italic Adobe PS
ITC Zapf Dingbats Scalable Plain Dingbats PS
Symbol Scalable Plain Symbol
Helvetica Scalable Plain, Bold, Oblique, Bold Oblique Adobe PS
Helvetica Narrow Scalable Plain, Bold, Oblique, Bold Oblique Adobe PS
ITC Avant Garde Scalable Book, Demi, Book Oblique, Demi Oblique Adobe PS

Apple LaserWriter IINT Paper Handling

Unprintable Region

Letter:

Left: .25 in. Top: .25 in.
Right: .25 in. Bottom: .25 in.

Legal:

Left: .5 in. Top: .5 in.
Right: .5 in. Bottom: .5 in.

Note: Actual imageable area may vary depending on the application program and/or printer driver.

Note: printing from the Macintosh requires Larger Print Area (Fewer Downloadable Fonts) to be checked in Page Setup (Options). The IBM PC (or compatible) takes advantage of the larger imageable area automatically.

Continuous Feeding

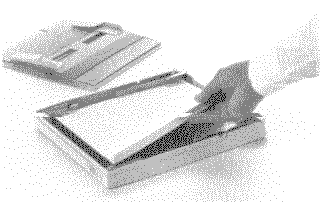

Loading paper into the paper tray.

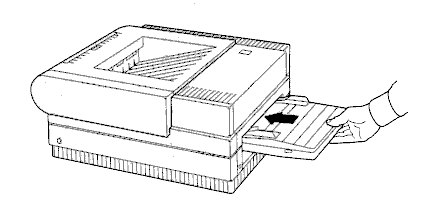

Inserting the letter tray into the front of the LaserWriter.

Standard Tray: One 200-sheet letter paper cassette

Optional Trays: Legal, A4, B5, envelope cassette

Envelope Feeding

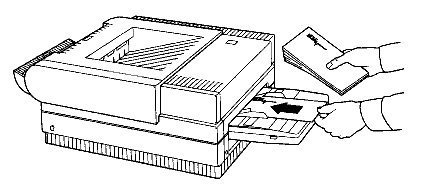

Envelopes feed face-up with the top edge against the right manual feed guide

Note: The printer senses cassette size and adjusts to maintain these margins. In the manual feed or envelope cassette mode, the operator must prevent printing beyond the margin to avoid depositing toner on the transfer corona or scraping toner from the drum.

Apple LaserWriter IINT, IINTX, IIg, IIf Messages

LaserWriter Status Lights

Light On Off Flashing

Printer is ready to use. Printer cannot print due to an error condition, or the cover is open. Printer is warming up, printing a startup page, or processing data for the next print job.

Toner is low or needs to be redistributed. Toner level is OK. Toner cartridge is installed incorrectly.

Paper cassette is empty. Paper supply is OK. Printer is ready for next sheet of manual-fed paper. Or printer may require service.

There is a paper jam. Paper is OK. Printer requires service.

Apple LaserWriter IINT Interfaces

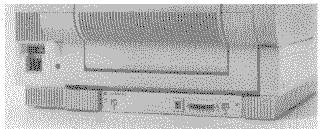

The communication ports are available directly beneath the face-up tray.

Serial

Availability: Standard

Connection: RS-232 and RS-422

Activation: DIP controlled

AppleTalk

Availability: Standard

Connection: 9 pin AppleTalk/LocalTalk

Activation: DIP controlled
