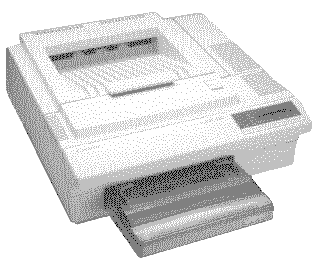

LBP-8 Mark III LBP-8 Mark III  |
Language:
CaPSL Optional: PostScript Speed: 8 PPM Memory: 1.5 MB4.5 MB (max) Graphics: 300 DPI Autorotate: Yes Duplex: Not Available RET: Not Available |
Fonts Per Page: 128 (Each attribute is a separate font)
Internal Fonts
Bitmap Internal Fonts
Portrait
Typeface Point Pitch Style Weight Symbol Set Landscape
Courier 12 10 Upright Medium ISO P&L
Courier 12 10 Upright Bold ISO P&L
Courier 12 10 Italic Medium ISO P&L
Courier 8.16 15 Upright Medium ISO P&L
Courier 12 10 Upright Medium DIABLO P&L
Courier 12 10 Upright Bold DIABLO P&L
Courier 12 10 Italic Medium DIABLO P&L
Courier 8.16 15 Upright Medium DIABLO P&L
Courier 12 10 Upright Medium Canon P&L
Courier 12 10 Upright Bold Canon P&L
Courier 12 10 Italic Medium Canon P&L
Courier 8.16 15 Upright Medium Canon P&L
Courier 12 10 Upright Medium IBM P&L
Courier 12 10 Upright Bold IBM P&L
Courier 12 10 Italic Medium IBM P&L
Courier 8.16 15 Upright Medium IBM P&L
ISO Symbol Sets include: British, US-ASCII, Swedish/Finnish, Norwegian/Danish, Japanese(Roman),
German, French, Italian, Spanish
Diablo Symbol Sets include: 19 Diablo Symbol Sets
Canon Symbol Sets include: 10 Canon Electronic Typewriter Symbol Sets
IBM Symbol Sets include: IBM-L, IBM-R1, IBM-R2, IBM-Portuguese,
Code Pages 850, 860, 863, and 865
Scalable Internal Fonts
Portrait
Typeface Point Pitch Style Weight Symbol Set Landscape
Dutch Scalable PS Upright Medium ISO P&L
Dutch Scalable PS Upright Bold ISO P&L
Dutch Scalable PS Italic Medium ISO P&L
Dutch Scalable PS Italic Bold ISO P&L
Dutch Scalable PS Upright Medium IBM P&L
Dutch Scalable PS Upright Bold IBM P&L
Dutch Scalable PS Italic Medium IBM P&L
Dutch Scalable PS Italic Bold IBM P&L
Dutch Scalable PS Upright Medium Postscript L&R P&L
Dutch Scalable PS Upright Bold Postscript L&R P&L
Dutch Scalable PS Italic Medium Postscript L&R P&L
Dutch Scalable PS Italic Bold Postscript L&R P&L
ISO Symbol Sets include: British, US-ASCII, Swedish/Finnish, Norwegian/Danish, Japanese(Roman),
German, French, Italian, Spanish
IBM Symbol Sets include: IBM-L, IBM-R1, IBM-R2, IBM-Portuguese,
Code Pages 850, 860, 863, and 865
Unprintable Regions
Left: 48 dots (0.16")
Right: 96 dots (0.32")
Top: 50 dots (0.2")
Bottom: 50 dots (0.2")

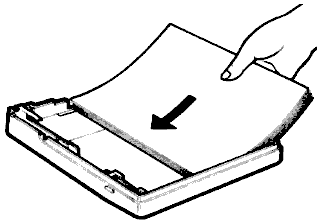

Continuous Feeding
Standard Tray: 200
pages Letter (or A4 depending on country of purchase)
Optional Trays: 200 pages Letter, Legal, Executive, and Envelope (15 at a time)

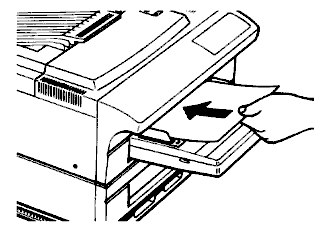

Manual Feeding
Paper is fed manually
through adjustable paper guides on the top of each tray.
Envelopes are manually fed centered.

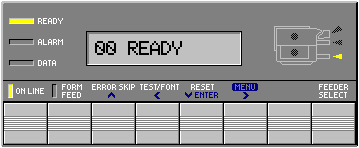

Message Meaning
Resolution
| 00 Ready | Printer ready to operate | |
| 01 Test Print B | Test print B being executed | Wait for it to complete |
| 02 WARMING UP | The printer is warming up | Wait for it to complete |
| 03 RESET | The printer has just been reset | Wait for it to complete |
| 04 TEST STOP | Printer is stopping test print | Wait for it to complete |
| 05 TEST PRINT A | Test print A is running | Wait for it to complete or Reset |
| 06 FONT LIST A | Font test print is running | Wait for it to complete or Reset |
| 07 FONT LIST B | Font test print is running | Wait for it to complete or Reset |
| 11 PAPER OUT | Paper cassette is empty | Add Paper |
| 12 PRINTER OPEN | Top cover of printer is open | Close Cover |
| 13 PAPER JAM | Paper jammed in printer | Check paper path for jammed paper and remove |
| 14 NO EP-CART | There is no process cartridge in the printer. | Install
a process cartridge in the printer. (often referred to as a Toner Cartridge) |
| 15 ENGINE TEST | The mechanical test is being executed. | Wait for it to complete |
| 16 TONER LOW | Toner is process cartridge is low. | Replace process cartridge. (Toner Cart.) |
| 20 PAGE FULL | Page buffer full | Lower memory message. May suggest a memory upgrade is required |
| 21 COMPLEX DATA | Data too complex | Try setting the PAINT MODE from PARTIAL to FULL PAINT. Then re-send the print job |
| 22 LINE ERROR | Receiving buffer overflow | Computer continued to send data after printer requested it to stop. Check to see if software is set properly. Possible bad cable. |
| 23 MEMORY FULL | Download overflow | Occurs during download of fonts internal printer macros. Suggests the need for a memory upgrade |
| 24 FULLPAINT REJ | Full Paint mode not allowed | Occurs when a graphic is too large to be printed. Suggests a printer with less than 512K of memory. Add memory, or reduce number of downloaded fonts |
| 25 VECTOR REJECT | Vector graphics not allowed | No documentation on error available |
| 26 MEMORY FULL | Work memory full | Suggests need for more memory in the printer. |
| 40 LINE ERROR | Communications circuit error | Check cables, possible hardware problem |
| 41 PRINT CHECK | Misprint has occurred | Resend print job. Contact canon for more info if error persists |
| 42 & 43 ERROR | Expansion interface error | Possible hardware problem with add on interface |
| FE FONT REMOVAL | Font cartridge removed while printer is on. | DO NOT
DO REMOVE FONT CARTRIDGES WITH POWER ON! Turn off printer try replacing font cartridge. Font cart. may have been damaged |
| FF FONT FULL | Font registration area is full. | May occur from too many fonts being downloaded. Reduce number of fonts being downloaded |
| PC LOAD A4 | Request for change to A4 cassette | Change paper cassette or press SKIP ERROR button |
| PC LOAD LETTER | Request for change to LETTER cassette | Change paper cassette or press SKIP ERROR button |
| PC LOAD LEGAL | Request for change to LEGAL cassette | Change paper cassette or press SKIP ERROR button |
| PC LOAD EXEC | Request for change to the EXECUTIVE cassette | Change paper cassette or press SKIP ERROR button |
| PC LOAD PAPER nn | Request to set nn-size paper. nn is a page format selection number defined via the host computer | No Documentation available -Press SKIP ERROR button |
| PF feed a4 | Request for manual feed of A4 paper | Feed requested paper through manual slot, or press SKIP ERROR button |
| PF FEED LETTER | Request for manual feed of LETTER paper | Feed requested paper through manual slot, or press SKIP ERROR button |
| PF FEED LEGAL | Request for manual feed of LEGAL paper. | Feed requested paper through manual slot, or press SKIP ERROR button |
| PF FEED EXEC | Request for manual feed of EXECUTIVE paper | Feed requested paper through manual slot, or press SKIP ERROR button |
| PF FEED PAPER nn | Request to feed nn size paper. nn is a page format selection defined by the host computer | Feed requested paper through manual slot, or press SKIP ERROR button |
| OC ************* | Operator Comment programmable via host computer) | N/A |

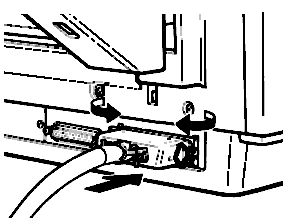

Canon LBP-8 Mark III Interfaces
Parallel
Availability: Standard
Connection: Centronics Female
Activation: Through front panel menu
Serial
Availability: Standard
Connection: DB-25 Configured
Activation: Through front panel menu
