CanonBubble Jet BJC-4100

Language: IBM Proprinter, Epson ESC/P

Speed:

BC-21 Color BJ cartridge; black ink

High quality mode - 173 CPS at 10 cpi

High speed mode - 255 CPS

BC-21 Color BJ cartridge; color ink

.3 to .8 ppm

BC-20 Black BJ cartridge; black ink

High quality mode - 346 cps at 10 cpi

High speed mode - 510 cps at 10 cpi

Graphics: 720 x 360 DPI

Color: Yes

 FontsPaperSettingsMessagesInterfaces

Canon Bubble-Jet BJC-4100 Fonts

Internal Fonts

Typeface Pitches (BJC-10/IBM mode) Pitches (Epson LQ mode)
Prestige 10, 12, 17, proportional 10, 12, 15, 17, 20, proportional
Courier 10, 12, 17, proportional 10, 12, 15, 17, 20, proportional
Draft 10, 12, 17, proportional 10, 12, 15, 17, 20, proportional
Roman 10, 12, 17, proportional 10, 12, 15, 17, 20, proportional
Script 10, 12, 17, proportional 10, 12, 15, 17, 20, proportional
Gothic 10, 12, 17, proportional 10, 12, 15, 17, 20, proportional

Canon BubbleJet BJC-4100 Paper Handling

Unprintable Regions

Left: .25 inch

Right: .25 inch

Top: .12 inch (.83 recommended)

Bottom: .30 inch (.81 recommended)

Continuous Feeding

Standard Feeders: One Paper Tray [capacity: 100 sheets or 15 envelopes]

Envelope Feeding

1. Make sure the printer is turned on and On-Line.

2. Make sure the green paper thickness lever on the inside of the printer is set to the right position.

3. Set the paper selection lever to the forward position and move the paper guide to the left to match the width of the envelopes.

4. Arrange the stack of envelopes on a firm surface and press down firmly on the edges to make the folds crisp. Press all the way around the envelopes to remove any curls and expel air from inside the envelopes.

5. Align the stack of envelopes with the right edge of the sheet feeder, and slide in the stack until it stops.

6. Adjust the paper guide to the stack of envelopes.

7. Print from your application.

After printing on envelopes, follow these steps before printing on normal paper again:

1. Set the paper selection lever (on the right side of the sheet feeder) to the back position.

2. Set the green paper thickness lever (inside the printer) to the left position.

3. If you enabled the envelope mode, disable it now. Make sure the printer is On-Line; then press the Paper Select button until the envelope light goes out. Press the on line button to set the printer back on line.

Canon BubbleJet BJC-4100 Messages

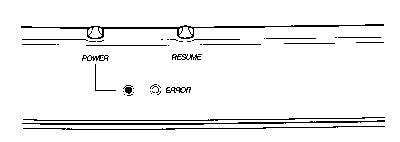

If the ERROR light comes on and the printer beeps, check for a paper misfeed or a paper jam:

1. Check the sheet feeder. If the paper has misfed or the printer is out of paper, reload paper into the sheet feeder as described in Chapter 3 of the printer manual.

2. check the printer for a paper jam. If a paper jam occurs, clear it as described in the printer manual.

If the ERROR light comes on, a controller error may have occurred. Follow these steps:

1. Press the POWER button to turn off the printer.

2. Wait 15 seconds, and press the POWER button again to turn on the printer. If the problem has been cleared, the ON LINE indicator will blink for several seconds and then come on steadily, and the BJ cartridge will move to the home position. If the problem continues, call the Canon help desk.

3. If you have been printing extensively for a while, the printer may need to cool. Wait several minutes and then turn the printer back on. If the problem continues, call the Canon help desk.

Canon BubbleJet BJC-4100 Settings

The printer by default is in LQ mode. To change it to BJ10 mode, the BJ10 Printer Setup Utility on Disk 3 of the driver disk set must be loaded onto the connected PC. The program will send the changes to the printer.

Canon BubbleJet BJC-4100 Interfaces

The interface connection is located on the back of the printer.

Parallel

Availability: Standard

Connection: Centronics Female

Activation: Automatic
