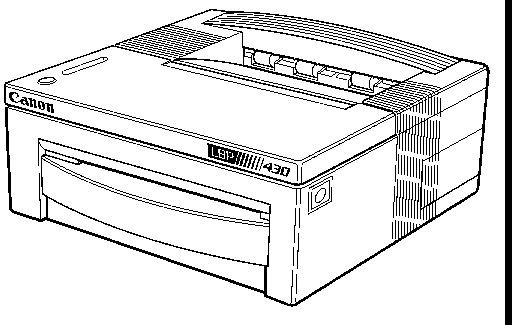

Canon LBP-430

Language: PCL5

Speed: 4 ppm

Memory: 1 MB

Graphics: 300 x 300 DPI

Autorotate: No

Duplex: Not Available

RET: Not Available

 FontsPaperMessagesInterfaces

Canon LBP-430 Fonts

Fonts Per Page:

Bit Map Internal Fonts

Typeface Point Pitch Style Orientation
Courier 10   Normal, Bold, Italic Portrait, Landscape
Courier 12   Normal, Bold, Italic Portrait, Landscape
Line Printer 8.5   Normal Portrait, Landscape
CG Times   Scale Normal, Bold, Italic, Bold Italic
Univers   Scale Normal, Bold, Italic, Bold Italic
Stick
Arc   Scale

Canon LBP-430 Paper Handling

Unprintable Regions

Left: 0.17"

Right: 0.17"

Top: 0.17"

Bottom: 0.17"

Continuous Feeding

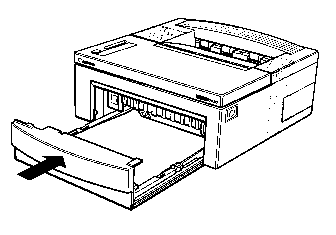

Standard Tray: 50 sheets face down mode, 20 sheets face up mode.

Optional Trays:

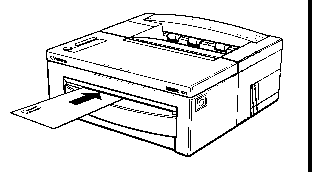

Manual Feeding

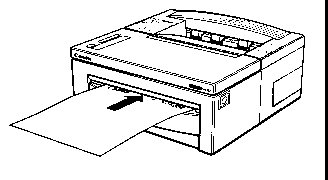

Single sheet through multi-purpose tray.

Canon LBP-430 Messages

Message Meaning Resolution

Indicator Light On

READY Memory overflow -- An area of the printer's memory called the page buffer has overflown with data from the host computer. Reduce the number of character sets, overlay pages, or macros stored in the printer's memory. Expand the printer's memory by adding a SIMM memory module.

Change the PAGE PROTECT setting to the size of the papet you are using and reset the printer. (Full paint mode requires 2 MB of memory. If necessary, add SIMM memory.)

DATA IN MEMORY Print overrun -- Data from the host computer is too complex. Change the PAGE PROTECT setting to the size of the papet you are using and reset the printer. In full paint mode, the printer does not eject the page until a full page is printed. (Full paint mode requires 2 MB of memory. If necessary, add SIMM memory.)
ADD/CHANGE PAPER Buffer overflow -- an area of the printer's memory called the input buffer has overflown. Thisi occurs when data arrives before the printer is ready to receive it (busy state). Make sure the interface cable is securely connected.

Check that the communications parameters on the printer and the host computer match.

PAPER JAM/CLOSE COVER Print check request -- A temporary error has occurred and affected the print image. Unexpected horizontal lines or images may appear in your printout. Do an error skip to remove the error. The printer will reprint the error page.
PRINTING ERROR and DATA IN MEMORY NVRAM error -- The printer cannot update the NVRAM settings. Reset the printer and try again. If the problem persists, call the Canon help desk at 1-800-423-2366 and ask for the telephone number of your local Canon Authorized Service Facility (ASF).

Service Errors

Service Error Code Numbers

1

2

3

4

5

6

7

8

Indicator Lights

X



X



X



X



Printing Error



X

X





X

X



Paper Jam/Close Cover







X

X

X

X



Add/Change Paper















X

Data In Memory

















Ready



Service Error Code Numbers

9

10

11

12

13

14

15

16

Indicator Lights

X



X



X



X



Printing Error



X

X





X

X



Paper Jam/Close Cover







X

X

X

X



Add/Change Paper

X

X

X

X

X

X

X



Data In Memory















X

Ready



Service Error Code Numbers

17

18

19

20

21

22

23

24

Indicator Lights

X



X



X



X



Printing Error



X

X





X

X



Paper Jam/Close Cover







X

X

X

X



Add/Change Paper















X

Data In Memory

X

X

X

X

X

X

X

X

Ready



Service Error Code Numbers

25

26

27

28

29

30

31

Indicator Lights

X



X



X



X

Printing Error



X

X





X

X

Paper Jam/Close Cover







X

X

X

X

Add/Change Paper

X

X

X

X

X

X

X

Data In Memory

X

X

X

X

X

X

X

Ready

Canon LBP-430 Interfaces

Parallel

Availability: Standard

Connection: Centronics Female

Activation: Through front panel menu

Serial

Availability: Standard

Connection: DB-25 Configured

Activation: Through front panel menu
