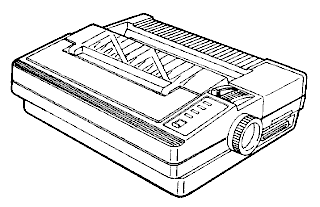

^TM 200GX

Language: IBM Proprinter, Epson ESC/P Speed: 160 CPS Graphics: 60, 120, 144dpi No. of Pins: 9

Citizen 200GX Fonts

Internal Fonts

Citizen 200GX Paper Handling

Standard Feeders: Push Tractor, Pull Tractor, Friction Feed.

Optional Feeders: Automatic Sheet Feeder: Permits continuous printing on cut sheets.
Manual Sheet Feeder: Permits stacking multiple cut sheets.

Continuous Feeding

Loading fanfold paper (push feed)

1. Place your fanfold paper stack below or behind your printer so that the paper may feed in from the rear of the printer.

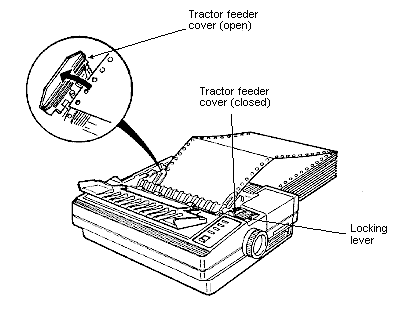

2. Unlock the tractor feeders by pulling the lock levers forward. Slide them left and right to the approximate paper width. Lock the left one in place.

3. Flip open both tractor feeder covers and position the paper's left sprocket holes over the tractor pins on the left tractor feeder. Snap it closed. Position the paper's right sprocket holes over the tractor pins on the right tractor feeder and snap it closed. Move the right tractor feeder gently until the paper is just taut between the two feeders. Re-lock the lock lever.

Look at the paper's edge and be sure it is straight. Paper which enters the printer crooked or off-center can cause a paper jam.

4. Set the paper select lever to the forward position, where the icon shows a stack of paper.

5. Install the paper guide/sheet separator in the sheet separator position. Do this by engaging the small extensions on the lower left and right corners of the paper guide onto the small posts pointing into the printer. Be sure you are using the higher of the two posts on each side.

Recline the paper guide backwards. Simultaneously the front end of the paper guide will slide forward slightly. The small extensions will rest on top of the second set of posts which point into the printer. Correctly installed, the paper guide will incline about 15 degrees.

6. Move the paper holders from the sides into the middle of the paper guide. This prevents your printed output from becoming accidentally jammed in the paper guide on its way out of the printer.

7. Turn on the printer.

8. Make sure the Command-Vue II slide switch is in the ON LINE position (all the way to the bottom).

9. Push the [PARK LOAD] key. They will advance the paper to the starting print position.

10. Press the [ON LINE] key.

Loading fanfold paper (bottom pull feed)

Use this feed for continuous forms such as multi-part forms and card stock.

1. Be sure the tractor is in the "pull" position.

2. Turn off the printer before loading the forms in from the bottom.

3. Remove the top cover.

4. Set the printer on its rear side.

5. Insert the forms through the slot in the bottom of the printer. Pull the forms through so that 4 or 5 inches extend out of the printer.

6. Set the print right-side-up again.

7. Open the tractor feeder covers, position the forms on the sprockets and close the covers. Be sure the paper is straight. Adjust the distance between the tractor feeders, if necessary, by unlocking the lock levers and sliding the feeder until the paper is taut. Re-lock the levers.

8. Move the paper select lever to the forward (paper stack) position.

9. Turn the paper feed knob clockwise until the second sheet of the forms is at the correct starting print position. When printing with the tractor in the "pull" position, the first sheet of the forms is unusable.

10. Set the paper thickness lever to +1 for 2-part forms, +2 for 3 or 4-part forms.

11. Replace the top cover, pressing on the "push" locations. The transparent part of the cover will rest against the tractor unit.

12. Turn on the printer.

Manual Feeding

Automatically loading single sheets

1. Be sure the tractor is in the "push" position.

2. Change the paper select lever to the rear (single sheet) position.

3. Install the paper guide in the upright position used for inserting paper. To do this, hold the paper guide so that the two corner extensions point downward into the printer. Hook the extensions onto the upper guide pins pointing into the printer, then slide them down so that they engage the lower guide pins, also.

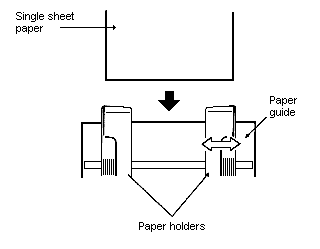

To use the paper guide, align the left edge of the left paper holder with the ruler which corresponds to the left margin you want to set. When you move the left paper holder, you can feel it click into place at the zero point (the thickest line) for a left margin of 0 (zero).

The ruler is measured in 10 characters per inch. It is recommended that you set it at the zero point if you want to control the margin through your software program.

Insert a sheet of paper and adjust the right paper holder to the paper width.

4. Make sure the MENU slide switch on the control panel is in the ON LINE position (all the way down).

5. with the sheet of paper out of the printer, turn on the 200GX. You will see the POWER and PAPER OUT lights will light.

6. Insert a piece of paper head-in, face-down, between the paper holders (as you would load paper in a typewriter). Push the paper down gently to be sure it is all the way in.

7. Wait a brief time (approximately half a second). The paper will automatically feed into the printer and stop when it reaches the correct position for the starting line of printer. The PAPER OUT light will go off.

8. Prepare to print by pressing the [ON LINE] key; the ON LINE lights will light.

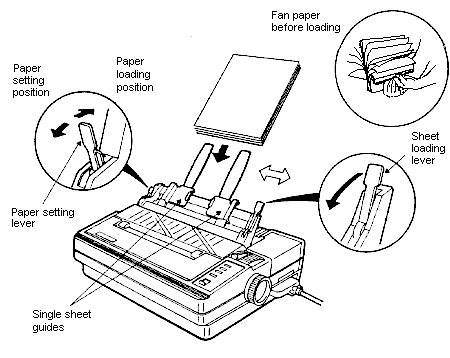

Loading paper in the Manual Sheet Feeder (the Manual Sheet Feeder is optional)

1. Move the paper setting lever (the left lever) forward.

2. Adjust the left and right guides on the sheet feeder to the size of the paper you are going to use.

3. The paper must be well fanned before stacking into the sheet feeder. This keeps the paper from "sticking" so that only one sheet is fed at a time. Approximately 50 sheets can be loaded, depending on the paper thickness.

4. After fanning the paper stack, align its edges by tapping the sides and the bottom of the paper stack on a flat surface.

5. Place the paper stack between the paper guide. Make sure the guides fit snugly but do not bow the paper stack. (When using letterhead paper, load the top edge of the paper upside down with the printed side facing backwards as you would when inserting letterhead in a typewriter.)

6. Move the paper setting lever to the rear position.

7. To load a sheet into the printer, move the sheet loading lever (the right lever) forward. This will advance the sheet halfway; then, the printer will automatically advance the sheet to the top-of-form (TOF) position.

Citizen 200GX Settings

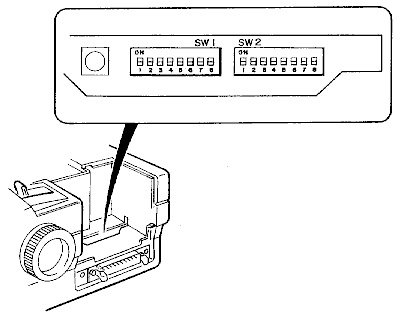

The default switches are located on the right side of the printer inside the serial interface compartment. You'll have to remove the serial interface cover to gain access to the default switches.

Some default switches act differently depending on whether the Epson or IBM configuration is selected. When you change the default switch, be sure that the proper emulation is selected by default switch 1-1.

SW1

Emulation Mode Epson

IBM

Use the following table for the Epson emulation mode:

SW1

Character Set Italic

Graphics

Zero Unslashed

Slashed

Auto Line Feed (LF) Off

On

Skip Perforation Off

On

International Character Set U.S.A.

France

Germany

England

Denmark I

Sweden

Italy

Spain

Use the following table for the IBM emulation mode:

SW1

Character Set Set 1

Set 2

Zero Unslashed

Slashed

Auto Line Feed (LF) Off

On

Auto CR after LF, VT, ESC J, Disabled

and ESC j Enabled

Code Page U.S. (437)

Multilingual (850)

Portuguese (860)

Canadian-French (863)

Norwegian (865)

Scandinavian (Citizen)

Use the following table for either emulation mode:

SW2

Default Font Draft

Roman

Sans Serif

Courier

Form Length 11 inches

12 inches

11.66 inches

8 inches

Top of Form Position 1 inch

9/16 inch

Automatic Sheet Feeder Disabled

Enabled

Graphics and Text Printing Unidirectional

Bi-directional

Color Printing Disabled

Enabled

Citizen 200GX Interfaces

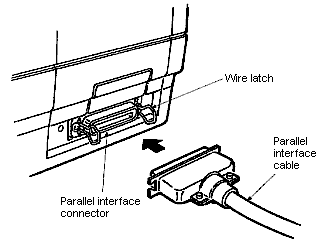

The interface connector is located on the right side of the printer towards the back.

Parallel

Availability: Standard

Connection: Centronics-compatible, 7 or 8 bit.

Activation: Automatic. The interfaces work on a "first come, first served" basis; the interface that receives data first becomes the active interface and remains active until you turn the printer off and on again. When an interface is active, the other one is not used, even if data is sent while the active interface is not receiving data.

Serial

Availability: optional

Connection: RS-232C. You need to specify the communication mode by setting the default switches on the serial interface board to the proper settings.

Activation: Automatic. The interfaces work on a "first come, first served" basis; the interface that receives data first becomes the active interface and remains active until you turn the printer off and on again. When an interface is active, the other one is not used, even if data is sent while the active interface is not receiving data.

Default Switches for the Serial Interface

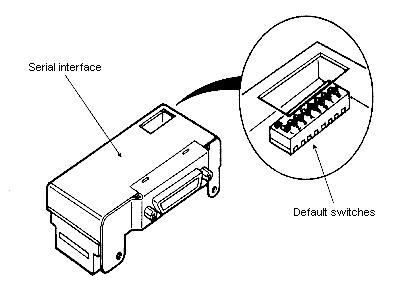

The default switches for the serial interface are locating on the optional serial interface board, visible through a hole on the top.

Baud Rate 9600

4800

2400

1200

600

300

110

Handshaking Protocol XON/XOFF

DTR (Data Ready)

Data bits 8 bits

7 bits

Parity Check Off

On

Parity Even

Odd

Stop bits 1

2
