Language:
Epson ESC P/2 Speed: 300 CPS - HS Draft 10 CPI, 275 CPS - Draft 10 CPI, 330 CPS - Draft 12 CPI, 92 CPS - LQ 10 CPI, 110 CPS - LQ 12 CPI Graphics: 60, 180, 360dpi No. of Pins: 24 |
Internal Fonts
Typeface | Quality | Height | Pitch |
High Speed Draft | HS Draft | 10.5 pt | 12 CPI |
Draft | Draft | 7 pt | 15 CPI |
Draft | Draft | 10.5 pt | 10 or 12 CPI |
Courier | LQ | 7 pt | 15 CPI |
Courier | LQ | 10.5 pt | 10 or 12 CPI |
Roman | LQ | 7 pt | 15 CPI |
Roman | LQ | 10.5 pt | 10 or 12 CPI or Proportional |
Sans Serif | LQ | 7 pt | 15 CPI |
Sans Serif | LQ | 10.5 pt | 10 or 12 CPI or Proportional |
Prestige | LQ | 10.5 pt | 10 or 12 CPI |
Script | LQ | 10.5 pt | 10 or 12 CPI |
Script C | LQ | 10.5 pt | Proportional |
Orator | LQ | 10.5 pt | 10 CPI |
Orator-S | LQ | 10.5 pt | 10 CPI |
OCR-B | LQ | 10.5 pt | 10 CPI |
Roman* | LQ | Scalable from 8 pt to 32 pt in 2 pt increments | |
Sans Serif* | LQ | Scalable from 8 pt to 32 pt in 2 pt increments |
*Accessed via ESC/P2 commands.
Continuous Feeding
Tractor Feed: Push or Pull tractor standard
Optional Feeders: Single
Bin for LQ-570
Dual Bin for LQ-570
Dual Bin for LQ-570
Additional Push/Pull Tractor for LQ-570
Manual Feeding
1. If you have tractor feed paper loaded in the printer and have a printed document still in the printer, press the TEAR OFF button to feed the paper forward to the tear-off position. Tear off the document and press the TEAR OFF button again to feed the continuous paper backward to the loading position.
2. Press the LOAD/EJECT button to feed the continuous paper out of the printer and into the standby position. The paper should be still attached to the tractor but no longer in the paper path.

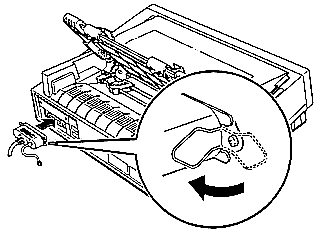

3. Push the paper-release lever back to the single-sheet position.
4. Move the edge guide until you feel it click into place above the arrow mark on the paper guide. You can slide the edge guide to the left in 1/10 inch increments to increase the size of the left margin on your printout.

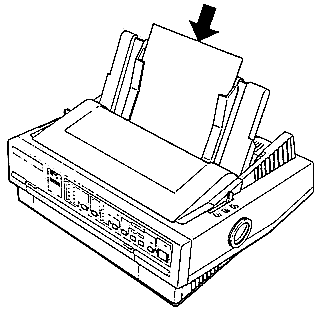

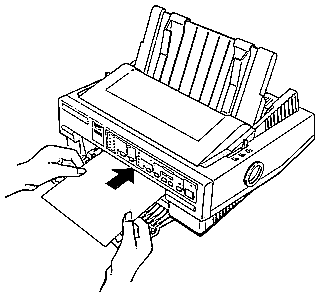

5. Align the left edge of
the paper with the edge guide and insert the paper firmly until
it meets resistance. The printer loads the paper automatically
6. Invoke printing from your software.
SW | Description | Setting | |
1-1 | International Character Set with Italics | USA | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
to | France | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
|
1-4 | Germany | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
|
UK | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Denmark I | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Sweden | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Italy | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Spain I | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Character Tables with Extended characters | United States PC-437 | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
|
Multilingual PC-850 | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Portugal PC-860 | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Canada-French PC-863 | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
Norway PC-865 | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
1-5 | Print Direction for Graphics | Unidirectional | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Bi-directional | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
1-6 | High Speed Draft | OFF | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
ON | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
1-7 | Input buffer capacity | 0KB | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
8KB | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
1-8 | Skip over perforation | ON | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
OFF | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
2-1 | Page Length | 11 inches | ![]() ![]() ![]() ![]() ![]() |
to | 12 inches | ![]() ![]() ![]() ![]() ![]() |
|
2-2 | 8.5 inches | ![]() ![]() ![]() ![]() ![]() |
|
11.7 inches | ![]() ![]() ![]() ![]() ![]() |
||
2-3 | Tear Off | ON | ![]() ![]() ![]() ![]() ![]() |
OFF | ![]() ![]() ![]() ![]() ![]() |
||
2-4 | Auto linefeed | ON | ![]() ![]() ![]() ![]() ![]() |
OFF | ![]() ![]() ![]() ![]() ![]() |
Parallel
Availability: Standard, Optional 32KB Parallel
Connection: Centronics Female
Activation: Default
Serial
Availability: Optional , Optional 32KB
Connection: 25 DB
Activation: Installing Card
