Language:
IBM Proprinter, Epson Speed: 200cps Fast Draft, 180cps Draft, 60cps Letter Quality Graphics: 60, 180, 360dpi No. of Pins: 24 |
Internal Fonts
Typeface | Quality | Heights | Pitches | Styles | Weights |
Fast Draft | Fast Draft | reg, dbl | 10,12,15,17,20,24 or Prop. | regular | regular, double strike, emphasized |
Draft | Draft | reg, dbl | 10,12,15,17,20,24 or Prop. | regular, italics | regular, double strike, emphasized |
Courier | Letter Quality | reg, dbl | 10,12,15,17,20,24 or Prop. | regular, italics | regular, double strike, emphasized |
Gothic | Letter Quality | reg, dbl | 10,12,15,17,20,24 or Prop | regular, italics | regular, double strike, emphasized |
Prestige | Letter Quality | reg, dbl | 10,12,15,17,20,24 or Prop | regular, italics | regular, double strike, emphasized |
Presentor | Letter Quality | reg, dbl | 10,12,15,17,20,24 or Prop | regular, italics | regular, double strike, emphasized |
Orator | Letter Quality | reg, dbl | 10,12,15,17,20,24 or Prop | regular, italics | regular, double strike, emphasized |
Script | Letter Quality | reg, dbl | 10,12,15,17,20,24 or Prop | regular, italics | regular, double strike, emphasized |

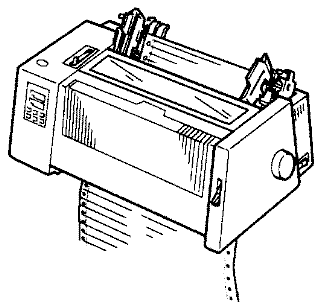

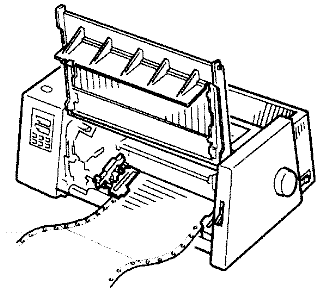

Tractor Feed
Push or Pull, four possible
paper paths
Manual Feeding
1. Pull up the paper select lever (on the front right) to the cut forms position.
2. Pull up the paper support (top rear) to the upright position.
3. Open the manual feed door on the front of the printer.
4. Before inserting paper, move the paper guide so that your desired print start position aligns with the symbol [A printed on the margin guide.
5. Holding paper against the
paper guide, insert the paper into the printer. The Paper Out
light will stop blinking and the paper will feed automatically to
the top-of-form.
Note: The paper will not feed automatically to the
top-of-form if the auto cut-sheet load function is disabled in
Setup Mode. To force the printer to load paper, press the Form
Feed button.
6. Press Start/Stop to put the printer on-line.
The printer's setup mode will print a menu. To put printer in Setup mode, press ALT then SETUP.
You can print a list of all current settings by pressing the FONT button in the Main Menu of Setup Mode.
