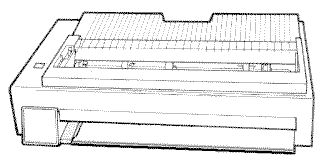

Proprinter / Proprinter XLProprinter / Proprinter XL |
Language:
IBM PPDS Speed: 200cps Draft Graphics: 240dpi Technology: 9-pin monochrome dot-matix |
Internal Fonts
Typeface Quality Heights Pitches Styles Weights
Normal Draft sing, dbl 10, 12, 17 normal normal, dbl strike
Near Letter Quality sing, dbl 10, 17 normal normal, emphasized
Italic is not available internally.

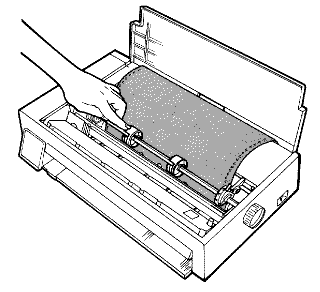

Tractor Feed: Push
feed
Optional Feeders: Optional cut-sheet feeder
Manual Feeding
1. Set the paper release lever toward the rear of the printer and set the form-thickness lever to the correct position for the type of forms you are using.
2. Slide the paper or
envelope into the front opening, aligning the left edge of the
paper with the cut-form guide. Slide the paper in until it stops.
Unless you keep the paper against the cut-form guide, the printer
does not sense the paper. (The cut-form guide is adjustable,
allowing you to vary the left margin)
3. Turn the paper advance knob to move the paper until the printhead is at the point where you want the printing to start.
4. Press the On-Line key and start your printing routine.

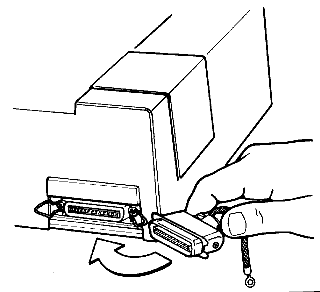

Parallel
Availability: Standard
Connection: Centronics Female
Activation: Automatic
Serial
Availability: Optional Card
Connection: DB-9 RS-232
Configuration: DIP switches on option card
