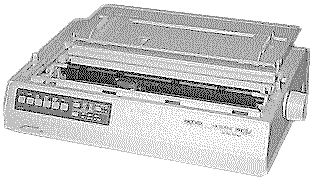

OkidataMicroline 390/391

Language: Epson, IBM (E/I Model)*
Okidata Standard (OKI model)*

Speed: Draft 270 CPSLQ 90 CPS

Graphics: 60,180, 360 DPI

No. of Pins: 24

 * To determine the model, do a self test by holding down the LF button while turning the printer on. The first line will indicate the model.

 FontsPaperSettingsInterfaces

Okidata Microline 390/391 Fonts

Internal Fonts

Typeface Quality Height Pitches
Utility Draft 6, 8, 10, 12, 14, 15 and 16 pts. 20, 14, 12, 10, 8.5, 8 and 7.5 CPI and proportional
Courier Letter Quality 6, 8, 10, 12, 14, 15 and 16 pts. 20, 14, 12, 10, 8.5, 8 and 7.5 CPI and proportional
Prestige Letter Quality 6, 8, 10, 12, 14, 15 and 16 pts. 20, 14, 12, 10, 8.5, 8 and 7.5 CPI and proportional
Letter Gothic Letter Quality 6, 8, 10, 12, 14, 15 and 16 pts. 20, 14, 12, 10, 8.5, 8 and 7.5 CPI and proportional
Resident Letter Quality 6, 8, 10, 12, 14, 15 and 16 pts. 20, 14, 12, 10, 8.5, 8 and 7.5 CPI and proportional

Okidata Microline 390/391 Paper Feeding

Continuous Feeding

Tractor Feed: Standard

Manual Feeding

Through the guides on top.

Okidata Microline 390/391 Settings

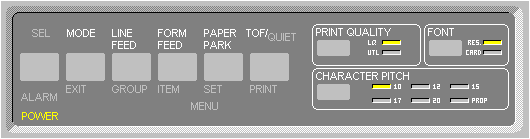

Menu Setup

To enter Menu mode press the MODE switch. Press GROUP switch to print first Menu item.

Upon entering Menu mode, the first GROUP - ITEM - SET is printed.

Use the GROUP switch to change groups. Use the ITEM switch to switch Items. Use the SET button to switch settings.

To exit Menu mode, press the MODE switch again.

Pressing the MODE/SEL switches simultaneously on power up will reset the Menu back to its factory.

Okidata Microline 390/391 Interfaces

The interface connector is located on the back of the printer.

Parallel

Availability: Standard

Connection: Centronics Female

Activation: SelecType Menu

Serial

Availability: Standard

Connection: RS-232 Serial interface

Activation: SelecType Menu
