OkiLaser 820 OkiLaser 820  |
Language:
PCL Level 4 w/ OkiXpress, IBM Proprinter, Diablo 630 Speed: 8 PPM Memory: 640KB, exp. to 2MB Graphics: 300 dpi Autorotate: Not Available Duplex: Not Available RET: Not Available |
Internal Fonts - HP LaserJet emulation bitmap fonts
Portrait/
Typeface Point Pitch Style Weight Symbol Set Landscape
Courier (C) 12 10 Upright Medium All* P & L
Courier (A/C/L) 12 10 Upright Bold All* P & L
Courier (C/L) 12 10 Italic Medium All* P & L
Courier (A) 12 10 Italic Light All* P
LinePrinter (C/L) 8.5 16.66 Upright Medium All* P & L
LinePrinter (A) 8.5 16.66 Upright Light All* L
Helv (B/F) 14.4 Prop. Upright Bold All* P
Helv (S2) 14 Prop. Upright Bold All* P
Tms Roman (S2) 12 Prop. Upright Medium Sub Set* P
Tms Roman (S2) 12 Prop. Upright Bold Sub Set* P
Tms-Roman (S2) 12 Prop. Italic Medium Sub Set* P
Tms Roman (B/F) 10 Prop. Upright Medium All* P
Tms Roman (B/F) 10 Prop. Upright Bold All* P
Tms Roman (B/F) 10 Prop. Italic Medium All* P
Tms Roman 10 P. Comp. Upright Medium US ASCII P
Tms Roman 10 P. Comp. Upright Bold US ASCII P
Tms Roman 10 P. Comp. Italic Medium US ASCII P
Tms Roman (B/F) 8 Prop. Upright Medium All* P
Tms Roman 8 Prop. Upright Light US ASCII P
Tms Roman 8 P. Comp. Upright Medium US ASCII P
* All symbols sets refer to the 39 resident symbols sets: Chinese, Danish PC Set2, Danish PC Ext., Danish/Norwegian, IBM Danish/Norwegian, Dutch, French, HP French, German, HP German, Italian, Latin 1, Norwegian v2, Portuguese, IBM Portuguese, Spanish, HP Spanish, IBM Spanish, Swedish, Swedish 1, Swedish 2, Swedish 3, Swedish/Finnish, United Kingdom, Code Page 437, Code Page 850, Code Page 860, Code Page 863, Code Page 865, IBM US, IRV, JIS ASCII, HP Legal, HP PC Set 1, HP PC Set 2, HP PC Ext., Roman-8, Roman Ext., US ASCII
* Sub Set refers to Roman-8, Latin 1, IBM US and IBM Danish/Norwegian
Letters in ( ) after fonts indicate HP font cartridge compatibility.
Internal Fonts - OkiXpress Scalable Fonts
Portrait
Typeface Point Pitch Style Weight Symbol Set Landscape
SWA Courier 10 4-240 10 Upright Medium All* P & L
SWA Courier 10 4-240 10 Upright Bold All* P & L
SWA Courier 10 4-240 10 Oblique Medium All* P & L
SWA Courier 10 4-240 10 Oblique Bold All* P & L
SWA Dutch 4-240 Prop. Upright Medium All* P & L
SWA Dutch 4-240 Prop. Upright Bold All* P & L
SWA Dutch 4-240 Prop. Italic Medium All* P & L
SWA Dutch 4-240 Prop. Italic Bold All* P & L
SWA Swiss 4-240 Prop. Upright Medium All* P & L
SWA Swiss 4-240 Prop. Upright Bold All* P & L
SWA Swiss 4-240 Prop. Oblique Medium All* P & L
SWA Swiss 4-240 Prop. Oblique Bold All* P & L
SWA Symbol 4-240 Prop. Upright Medium 8 Symbols* P & L
*All refers to the 49 SWA Symbol sets: Chinese, Danish PC Set 2, Danish PC Extension, Danish/Norwegian, IBM Danish/Norwegian, Dutch, French, HP French, German, HP German, Italian, ECMA-94 Latin 1, Norwegian, Portuguese, IBM Portuguese, Spanish, HP Spanish, IBM Spanish, Swedish, Swedish 1, Swedish 2, Swedish 3, Swedish/Finnish, United Kingdom, Code Pages 437, 850, 860, 865, 863, IBM PC Set 1, IBM PC Extension, IBM US PC, Bitstream FLEX 1, Bitstream FLEX 2, GEM International, Microsoft Windows ANSI, Postscript 1, PostScript Standard Encoding, Type Director, HP Desktop, Ventura International, Ventura US, HP Legal, IRV, JIS ASCII, OEM-1, IBM PC Set 2 US, HP Roman-8, HP Roman-8 Extension, US ASCII
*8 Symbols refers to the 8 SWA Symbol symbol sets: HP LineDraw, HP Math 7, 8, 8a, 8b, HP PC Line, HP Pi, Postscript
Optional Fonts
Unprintable Regions
Left: 60 dots (0.2")
Right: 90 dots (0.3")
Top: 75 dots (0.25")
Bottom: 66 dots (0.22")

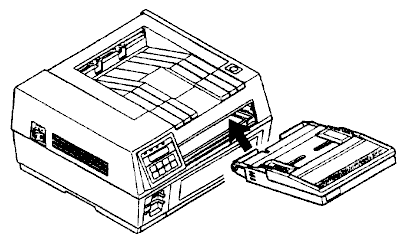

Continuous Feeding
Standard Tray: Letter 200 sheets
Optional Trays: Optional
Legal, Executive, Envelope
To enable second paper tray for dual bin operation, the Second
Paper Tray Mechanism must be installed. Part # 70013901

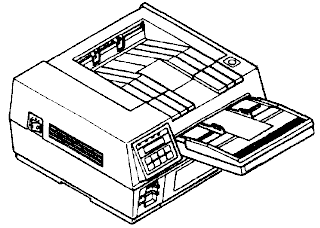

Manual Feeding
1. Set your software's printing feed options to "Manual" or set the PAPER FEED item on your printer menu to MANUAL FEED.
2. Set the paper guides on the paper tray cover to the width of the sheet or envelope. The guides should not bind the sheet.
3. Insert the sheet or envelope into the feed rollers.
4. Send your document to the printer as you normally would.
5. You will see the message LETTER PAPER (or whatever paper size you've specified through your software) MANUAL REQUEST. Press the FORM FEED button. The first page will feed and print.
6. You'll see the LETTER PAPER MANUAL REQUEST message for each subsequent page. Simply insert a new page and press FORM FEED.
7. When you're finished, reset the printer menu for PAPER FEED TRAY if necessary.
| Message | Meaning /Resolution | |
| ON-LINE | The printer is ready to receive data. | |
| OFF-LINE | The printer is off-line. | |
| DATA PRESENT | The printer is receiving data | |
| WARMING UP | The printer is warming up. | |
| PAPER FEED JAM n | There is a paper jam in tray n. | |
| PAPER OUT TRAY N | Paper tray n is out of paper. | |
| [paper size] MANUAL REQUEST | Manually feed a piece of [paper size] paper. | |
| [paper size] TRAY n REQUEST | Insert the [paper size] paper tray. | |
| ERROR RECEIVEBUFFER OVERFLOW | The printers buffer has overflowed. Check the settings on computer and printer to assure proper flow control. | |
| ERROR DLLBUFFER OVERFLOW | The downloadable font required too much memory. | |
| ERROR MACROBUFFER OVERFLOW | The macro required too much memory | |
| ERROR PRINTOVER RUN | The page was too complex. | |
| LOWER CARDNOT FOUND | The requested font card was not found. | |
| UPPER CARDNOT FOUND | The requested font card was not found. | |
| ERROR CARDREMOVED ON-LINE | The font card was removed while the printer was on-line. Turn the printer off, re-insert the card, and then turn the printer back on. | |
| ERROR CARD CHECK | The printer cannot read the font card. Try reseating the card. | |
| MENU RESET | The printer is resetting the menu options. | |
| RESET | The printer is resetting. | |
| COVER OPEN | The cover is open. Close the cover to continue. | |
| PRINT MENU | The menu settings are being printed. | |
| CHANGE DRUM | The drum unit must be replaced. | |
| PRINT FONTS | A font test is being printed. | |
| CONTINUOUS PRINT | A continuous print test is being printed. | |
| LOOP TEST | The serial port loop test is active. | |
| ERROR LOOP TEST | There was an error in the loop test. | |
| DEMO PAGE PRINT | The demo page is being printed. | |
| All other errors | The printer requires service. |
Parallel
Availability: Standard
Connection: Centronics
Activation: Menu
Serial
Availability: Standard
Connection: DB-25
Activation: Menu
