PCL Level 4 (HP IIP) Speed: 5 ppm Memory: 512k Standard, 4.5mb Optional Graphics: 300 dpi Autorotate: Yes Duplex: Yes RET: Not Available |
Fonts Per Page: 16 (Each attribute is a separate font)
Internal Fonts
Typeface | Point | Pitch | Style | Weight | Symbol Set | Orientation |
Courier | 7.2 | 16.66 | Upright | Medium | Roman-8 | P/L |
Courier | 7.2 | 16.66 | Italic | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Bold | Roman-8 | P/L |
Courier | 10 | 12 | Italic | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Bold | Roman-8 | P/L |
Courier | 12 | 10 | Italic | Medium | Roman-8 | P/L |
Century 702 | 10 | PS | Upright | Medium | Roman-8 | P/L |
Century 702 | 10 | PS | Upright | Bold | Roman-8 | P/L |
Century 702 | 10 | PS | Italic | Medium | Roman-8 | P/L |
Font Test
To check fonts available in
printer, Take the printer OFF LINE. Press the [MENU] key. The
display will show RESET. Press [] or [
] on the printer
once to show TEST. Press the [ENTER] key. The
printer will now display STATUS PRINT. Press [
] or [
] to display LIST
PRINT. Press the [ENTER] key.
Optional Fonts
Unprintable Regions
Left: 50 dots (1/6")
Right: 100 dots (1/3")
Top: 60 dots (1/5")
Bottom: 60 dots (1/5")
Continuous Feeding
Standard Tray: 1
Mulit-Purpose Continuous Cassette [capacity: 150 sheets]

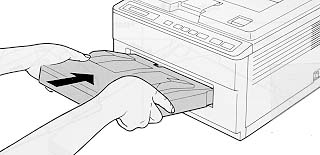

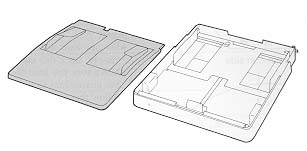

Loading paper cassette
This printer is provided with a multi purpose cassette. You can use paper from envelope size to legal size.

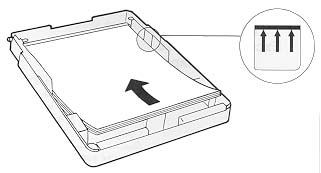

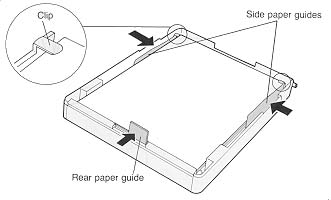

Loading letter or small size paper:

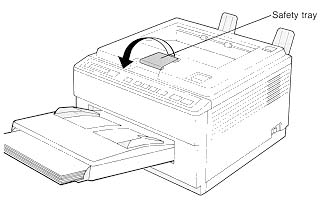

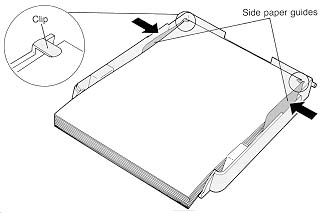

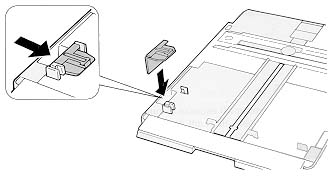

Loading Legal Paper
Manual Feed
Message | Meaning | Resolution |
U10 PAPER EMPTY | In automatic paper feed mode, both standard and optional paper are empty or no cassettes are installed. | Load paper. |
U11 PAPER EMPTY | In automatic paper feed mode, or standard cassette feed mode, the standard paper is empty or no cassettes are installed. | Load paper. |
U12 PAPER EMPTY | In automatic paper feed mode or optional cassette feed mode, the optional paper is empty or no cassettes are installed. | Load paper. |
U13 LOAD ENV | Printer requires envelope. | Load envelope or force printing by the ON LINE key. |
U13 SC LOAD ENV | Printer requires #9 or #10 envelope in standard cassette. | Load #9 or #10 envelope in standard cassette and set to #9 or #10 envelope format in standard format menu or force printing by trhe ON LINE key. |
U13 SC LOAD MON | Printer requires monarch paper in standard cassette. | Load monarch paper in standard cassette and set to monarch format in standard format menu or force printing by the ON LINE key. |
U13 SC LOAD DL | Printer requires international DL paper in standard cassette. | Load international DL paper in standard cassette and set to international DL format in standard format menu or force printing by the ON LINE key. |
U13 SC LOAD C5 | Printer requires international C5 paper in standard cassette. | Load international C5 paper in standard cassette and set to international C5 format in standard format menu or force printing by the ON LINE key. |
U13 MF LOAD ENV | Printer requires #9 or #10 envelope in manual feed area. | Load #9 or #10 envelope in manual feed area or force printing by the ON LINE key. |
U13 MF LOAD MON | Printer requires monarch paper in manual feed area. | Load monarch paper in manual feed area or force printing by the ON LINE key. |
U13 MF LOAD DL | Printer requires international DL paper in manual feed area. | Load international DL paper in manual feed area or force printing by the ON LINE key. |
U13 MF LOAD C5 | Printer requires international C5 paper in manual feed area. | Load international C5 paper in manual feed area or force printing by the ON LINE key. |
U14 LOAD LGL | Printer requires legal paper in stadard cassette or 2nd cassette option. | Load legal paper ins tanadard cassette or 2nd cassette option and set to legal format in stnadard or optional format menu or force printing by ON LINE key. |
U14 SC LOAD LGL | Printer requires legal paper in standard cassette. | Load legal paper in standard cassette and set to legal format in stnadard format menu or force printing by the ON LINE key. |
U14 OC LOAD LGL | Printer requires legal paper in 2nd cassette option. | Load legal paper in 2nd cassette option and set to legal format in optional format menu or force printing by the ON LINE key. |
U14 MF LOAD LGL | Printer requires legal paper in manual feed area. | Load legal paper in manual feed area or force printing by the ON LINE key. |
U15 LOAD LETTER | Printer requires letter paper in standard cassette or 2nd cassette option. | Load letter paper in standard cassette or 2nd cassette option and set to letter format in standard or optional format menu or force printign by the ON LINE key. |
U15 SC LOAD LETTER | Printer requires letter paper in standard cassette. | Load letter paper in standard cassette and set to letter format in standard format menu or force printing by the ON LINE key. |
U15 OC LOAD LETTER | Printer requires letter paper in 2nd cassette option. | Load letter paper in 2nd cassette option and set to letter format in optional format menu or force printing by the ON LINE key. |
U15 MF LOAD LETTER | Printer requires letter paper in manual feed area. | Load letter paper in manual feed area or force printing by ON LINE key. |
U16 LOAD EXEC | Printer requires executive paper in standard cassette or 2nd cassette option. | Load executive paper in standard cassette or 2nd cassette option and set to executive format in standard or optional format menu or force printign by the ON LINE key. |
U16 SC LOAD EXEC | Printer requires executive paper in standard cassette. | Load executive paper in standard cassette and set to executive format in standard format menu or force printing by the ON LINE key. |
U16 OC LOAD EXEC | Printer requires executive paper in 2nd cassette option. | Load executive paper in 2nd cassette option and set to executive format in optional format menu or force printing by the ON LINE key. |
U16 MF LOAD EXEC | Printer requires executive paper in manual feed area. | Load executive paper in manual feed are or force printing by ON LINE key. |
U17 LOAD A4 | Printer requires A4 paper in standard cassette or 2nd cassette option. | Load A4 paper in standard cassette or 2nd cassette option and set to A4 format in standard or optional format menu or force printign by the ON LINE key. |
U17 SC LOAD A4 | Printer requires A4 paper in standard cassette. | Load A4 paper in standard cassette and set to A4 format in standard format menu or force printing by the ON LINE key. |
U17 OC LOAD A4 | Printer requires A4 paper in 2nd cassette option. | Load A4 paper in 2nd cassette option and set to A4 format in optional format menu or force printing by the ON LINE key. |
U17 MF LOAD A4 | Printer requires A4 paper in manual feed area. | Load A4 paper in manual feed are or force printing by ON LINE key. |
U20 CHNG TONER | Too little toner is in the toner cartridge. | Change toner cartridge. |
U21 TONER EMPTY | Over 50 copies tried with "CHNG TONER" cartridge displayed. | Change toner cartridge. |
U24 NO DRUM | Drum unit is not installed. | Install drum unit. |
U26 CHNG DEV | Developer unit has been installed for 90,000 print cycles. | Install new developer unti and clear the message. |
U27 CHNG DRUM | Drum unit reaches time for replacement. | Install new drum unit. The printer will print approximately 100 pages after the message is displayed then the printer will automatically stop. |
U30 DOOR OPEN | The clamshell is open. | Close the clamshell. |
U32 FONT UNAVAIL | Font card is not installed when requested. | Install the font card. |
U33 NO FONT CARD | Font card is removed in ON LINE mode. | Power off then on. |
U35 BUFFER FULL | Receive buffer overflow. | Power off then on. |
U36 RAM OVERFLOW | Page overflow, image overflow or download overflow has occurred. | Press ON LINE key. |
U37 PAGE FORMAT | Overrun has occurred. | Press ON LINE key. |
U38 RE-DO FORMAT | Format designation from format menu is not correct. | Reset format. |

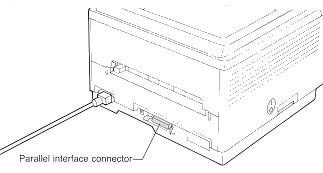

The interface connector is
located on the back of the printer at the bottom.
Parallel
Availability: Standard
Connection: Centronics Female
Activation: No configuration needed for Centronics Parallel connection.
