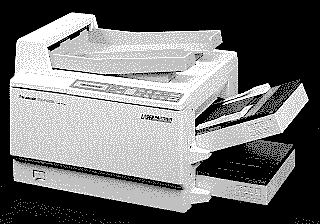

Language:
PCL Level 4, IBM Proprinter, Epson, Diablo 630, Panasonic
KX-P1080 Speed: 11 ppm Memory: 512 KB Graphics: 300, 150, 75dpi Autorotate: Yes Duplex: Yes RET: Not Available |
Fonts Per Page: 16 (Each attribute is a separate font)
Internal Fonts (Font Group 1)
Typeface | Pt. | Pitch | Style | Weight | Sym. Set | Orient. |
Courier | 6 | 20 * | Upright | Medium | Roman-8 | P/L |
Courier | 7.2 | 16.66 | Upright | Medium | Roman-8 | P/L |
Courier | 7.2 | 16.66 | Italic | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Bold | Roman-8 | P/L |
Courier | 10 | 12 | Italic | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Bold | Roman-8 | P/L |
Courier | 12 | 10 | Italic | Medium | Roman-8 | P/L |
Century 702 | 10 | PS | Upright | Medium | Roman-8 | P/L |
Century 702 | 10 | PS | Upright | Bold | Roman-8 | P/L |
Century 702 | 10 | PS | Italic | Medium | Roman-8 | P/L |
*20 cpi is for Epson and IBM MODE only
Internal Fonts (Font Group 2)
Typeface | Pt. | Pitch | Style | Weight | Sym. Set | Orient. |
Courier | 7.2 | 16.66 | Upright | Medium | Roman-8 | P/L |
Courier | 7.2 | 16.66 | Italic | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Bold | Roman-8 | P/L |
Courier | 10 | 12 | Italic | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Bold | Roman-8 | P/L |
Courier | 12 | 10 | Italic | Medium | Roman-8 | P/L |
Internal Fonts (Font Group 3)
Selects LaserJet Series II resident fonts and the HP S1 cartridge fonts
Typeface | Pt. | Pitch | Style | Weight | Sym. Set | Orient. |
Courier | 7.2 | 16.66 | Italic | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Bold | Roman-8 | P/L |
Courier | 10 | 12 | Italic | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Medium | Roman-8 | P/L |
Courier | 12 | 10 | Upright | Bold | Roman-8 | P/L |
Courier | 12 | 10 | Italic | Medium | Roman-8 | P/L |
Internal Fonts (Font Group 4)
Selects LaserJet Series II resident fonts only
Typeface | Pt. | Pitch | Style | Weight | Sym. Set | Orient. |
Courier | 10 | 12 | Upright | Medium | Roman-8 | P/L |
Courier | 10 | 12 | Upright | Bold | Roman-8 | P/L |

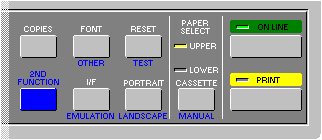

Font Test
1. Take printer OFF Line and press 2nd Function key. The display will now show 2ND FUNCTION.

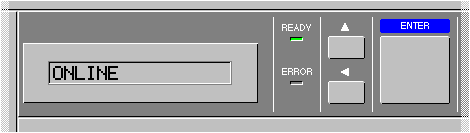

2. Press the [TEST] key. The display will now show STATUS PRINT.
3. Press either the Up or Down arrow key until the display shows FONT LIST PRINT.
4. Press the [ENTER] key.
Optional Fonts
Unprintable Regions
Left: 50 dots (1/6")
Right: 92 dots (0.303")
Top: 60 dots (1/5")
Bottom: 58 dots (0.193")

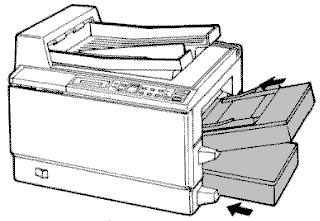

Continuous Feeding
Standard Tray: 2
Continuous Paper cassettes [capacity: 250 sheets each] and manual
feed
Optional Trays: Legal, Envelope

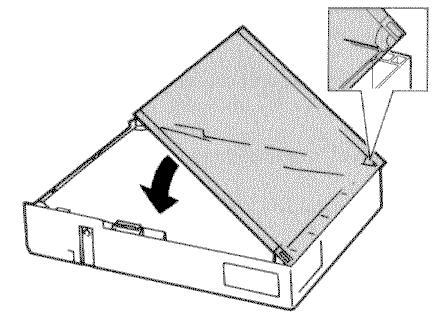

1. Remove the paper cassette from the printer pulling straight out.
2. Remove the paper cassette cover.
3. Fan the stack of paper, place it in the paper cassette and push it under the clips.
4. Install the paper
cassette cover.
5. Insert the paper cassette into the printer until it is firmly in place.
NOTE: The paper cassette with manual feed must be installed in the upper slot.

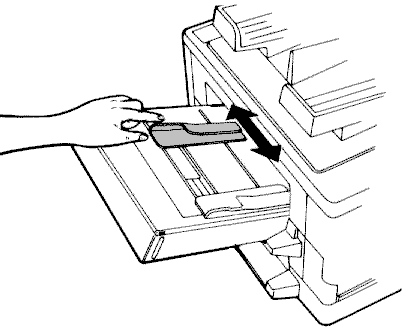

Manual Feeding
1. Install the paper cassette with manual feed in the upper slot of the printer.
2. Adjust the manual feed
guide on the paper cassette cover to fit your sheet of paper.
3. Be sure that the READY indicator is lit. Insert a sheet of paper between the manual feed guide and paper guide until it stops making sure the right edge of the paper is against the paper guide.
4. Send data from the computer to the printer. the printer will start printing when page data is completed.
Message | Meaning | Resolution |
U10 PAPER EMPTY | In automatic paper feed mode, both upper and lower cassettes are empty or no cassettes are installed. | Load paper and install cassette. |
U11 PAPER EMPTY | In automatic paper feed mode or upper cassette paper feed mode, the upper cassette is empty or not installed. | Load paper and install the upper cassette. |
U12 PAPER EMPTY | In automatic paper feed mode or Lower cassette paper feed mode, the lower cassette is empty or not installed. | Load paper and install the lower cassette. |
U13 NO ENV CAS | Printer requires envelope cassette | Load envelope #10 for manual feed. |
U14
NO LEGAL CAS LOAD LEGAL |
Printer requires legal format. | Load legal cassette or force printing by the ON LINE key. |
U15
NO LTR CAS LOAD LETTER |
Printer requires letter format. | Load letter cassette or force printing by the ON LINE key. |
U17
NO A4 CAS LOAD A4 |
Printer requires A4 format | Press ON LINE key. |
U20
ADD TONER CHECK TNR CUP |
Toner is below the upper level in the hopper unit. | Add Toner. |
U21 ADD TONERCHECK TNR CUP | Too many copies tried with "ADD TONER U20" displayed. | Add Toner. |
U22 TONER CHARGE | A low toner condition is detected and toner is being supplied. | Automatic recovery. |
U23 NO TONER CUP | Toner disposal bottle is not installed or must be replaced. | Install or replace toner disposal bottle. |
U24 NO DRUM | Drum unit is not installed. | Install drum unit. |
U25 NO DEV UNIT | Developer unit is not installed. | Install developer unit |
U26 CHANGE DEV | Developer unit requires replacement | Install new developer unit |
U27 CHANGE DRUM | Drum unit requires replacement. | Install new drum. |
U28 TNR CUP FULL | Toner disposal bottle is full. | Install new toner disposal bottle. |
U30 DOOR OPEN | Top cover is open | Close top cover |
U32 FONT UNAVAIL | Font card is not installed when requested. | Install font card. |
U33 NO FONT CARD | Font card is removed in ON LINE mode. | Power off then on. |
U34 RESEND JOB | Communication error is detected in the RS-232C interface during receive. Error 1 byte is changed to * mark. | Press ON LINE key twice |
U35 BUFFER FULL | Receive buffer overflow. | Power off then on. |
U36 RAM OVERFLOW | Page overflow, image overflow, or download overflow has occurred. | Press ON LINE key. |
U37 PAGE FORMAT | Overrun has occurred. | Press ON LINE key. |
U50 TEMP CONTROL | When continuously printing envelopes, the printer stops for 30 seconds after every 30 impressions. | Automatic recovery |
U51 WARM UP | When a new developer unit is installed, mixing of new developer is required. | Automatic recovery |
U52 WARM UP | When a new drum is installed, initialization is required. | Automatic recovery |
Both the serial and parallel interface connections are located on the back of the printer towards the upper right corner.
Parallel
Availability: Standard
Connection: Centronics Female
Activation: 1. Make sure the printer is off-line.
2. Press the [I/F] key. The printer will display the currently selected interface.
3. Press the [] until CENTRONICS
is displayed.
4. Press the [ENTER] button to select this interface.
5. Put the printer back on-line.
Serial
Availability: Standard
Connection: Serial RS-232C Female
Activation: 1. Make sure the printer is off-line.
2. Press the [I/F] key. The printer will display the currently selected interface.
3. Press the [] until RS232C
is displayed.
4. Press the [ENTER] button to select this interface.
5. Put the printer back on-line.
