Language:
PostScript Level II Speed: 4 minutes per page Method: Color Dye Sublimation Graphics: 300dpi Autorotation: Yes Duplex: Not Available RET: Not Available |
Internal Fonts (Postscript)
Typeface | Size | Variation | Orientation | Symbol Set |
Times-Roman | Scalable | Plain | P & L | Adobe PS |
Scalable | Roman Italic | P & L | Adobe PS | |
Scalable | Bold | P & L | Adobe PS | |
Scalable | Bold Italic | P & L | Adobe PS | |
Courier | Scalable | Plain | P & L | Adobe PS |
Scalable | Bold | P & L | Adobe PS | |
Scalable | Oblique | P & L | Adobe PS | |
Scalable | Bold Oblique | P & L | Adobe PS | |
Helvetica | Scalable | Plain | P & L | Adobe PS |
Scalable | Bold | P & L | Adobe PS | |
Scalable | Oblique | P & L | Adobe PS | |
Scalable | Bold Oblique | P & L | Adobe PS | |
Helvetica Narrow | Scalable | Plain | P & L | Adobe PS |
Scalable | Bold | P & L | Adobe PS | |
Scalable | Oblique | P & L | Adobe PS | |
Scalable | Bold Oblique | P & L | Adobe PS | |
Symbols | Scalable | Plain | P & L | Symbol |
Palatino | Scalable | Roman | P & L | Adobe PS |
Scalable | Bold | P & L | Adobe PS | |
Scalable | Italic | P & L | Adobe PS | |
Scalable | Bold Italic | P & L | Adobe PS | |
New Century Schoolbook | Scalable | Plain | P & L | Adobe PS |
Scalable | Italic | P & L | Adobe PS | |
Scalable | Bold | P & L | Adobe PS | |
Scalable | Bold Italic | P & L | Adobe PS | |
ITC Bookman | Scalable | Light | P & L | Adobe PS |
Scalable | Light Italic | P & L | Adobe PS | |
Scalable | Demi | P & L | Adobe PS | |
Scalable | Demi Italic | P & L | Adobe PS | |
ITC Zapf Chancery | Scalable | Medium Italic | P & L | Adobe PS |
ITC Avant Garde | Scalable | Book | P & L | Adobe PS |
Scalable | Demi | P & L | Adobe PS | |
Scalable | Book Oblique | P & L | Adobe PS | |
Scalable | Demi Oblique | P & L | Adobe PS | |
ITC Zapf Dingbats | Scalable | Plain | P & L | Dingbats PS |
Rear panel DIP switches
SW | Description | Setting | |
1 | Reset/run | The printer runs a self-test then proceeds to run normally. Leave the switch down for normal operation. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
The printer resets and does not accept data while the switch is in this position. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
2-3-4 | Reserved | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
|
5 | Start Job | The Sys/Start job on the hard disk runs | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
The Sys/Start job does not run. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
6 | Paper Size | American. The printer places an American-size image on the paper, regardless of the type of paper you are using. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Metric. The printer assumes you are using metric-size paper. The printer places a metric-size image on the paper regardless of what size paper you are using. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
7 | Baud Rate | Variable. Lets you change the serial communication parameters. The factory setting is 9600 baud, software flagging and ignore parity. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Fixed. Sets the serial communication parameters to 1200 baud, software flagging and ignore parity. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
8 | Color Correction | Default. No color correction. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Blue. The printer's blue appears less purple. When this switch is up, the printer also adjusts the other colors in the image that in the cyan-blue-purple-magenta range. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
||
9 | Color Correction | Off. Default Colors. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Press. The printer adjusts colors to more closely match colors that are produced by a printing press. | ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |

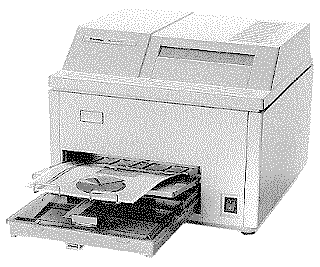

The interfaces for the TEK-Phaser IIsdx are located on the back side of the printer.
Parallel
Availability: Standard
Connection: High-speed parallel
Activation: Automatic
Serial
Availability: Standard
Connection: RS-232-C serial
Activation: Automatic
AppleTalk
Availability: Standard
Connection: 9 pin AppleTalk/LocalTalk
Activation: Automatic
Ethernet
Availability: Standard
Connection:
Activation: Refer to Network Utilities Guide
Unprintable Region
Left:
.2 in. Top: .7 in. Right: .2 in. Bottom: .7 in. |
![]() |
Continuous Feeding
Standard Trays A standard tray is provided which adjusts to accept letter or legal size paper.
Indicator | On | Blinking | Off |
POWER | The Power switch is on. | N/A | The Power switch is off, the printer is unplugged, or the power supply has failed. |
READY | The printer is ready for operation. | The printer is processing or printing an image. | The printer is not ready, or there is an error. |
ERROR | The print engine has an error that is not user-correctable. If this indicator lights at any time other than power-up, turn the printer off, wait 30 seconds, then turn it on again. If the indicator lights again, the printer requires service. | The printer's controller board has an error that is not user-correctable. If this indicator lights at any time other than power-up, turn the printer off, wait 30 seconds, then turn it on again. If the indicator lights again, the printer requires service. | Normal operation there are no print engine or controller board errors. |
JAM | Media is jammed inside the printer. | The printer has failed to pick up the media for a print job. Remove the paper tray and put it back in to clear the error. It may be necessary to clean the paper pick rollers. | Normal operation: there are no media jams. |
PAPER | There is no media in the selected tray, or the selected tray is not installed. | The media type selection made from the driver is different from the media type selection made at the printer with the lever on the media tray.. | Media is ready to feed. |
COVER | The top cover or the front cover is open. | N/A | Normal operation: The top and front covers are closed. |
TRANSFER ROLL | At least 75% of the transfer roll is used up. The printer can make prints with the remainder of the transfer roll. | The transfer roll is used up or not installed. This light will also blink if a non-Tektronix transfer roll is installed. | Normal operation: less than 75% of the transfer roll is used. |
