LaserJet

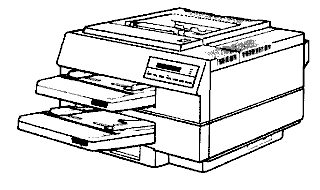

IID LaserJet
IID  |
Language:
PCL Level 4 Optional Cartridges Speed: 8ppm Memory: 512KB Standard1,2,4MB Optional Graphics: 300dpi Autorotate: Yes Duplex: Yes RET: Not Available |
Fonts Per Page: 16 (Each attribute is a separate font)
Internal Fonts
| Typeface | Size | Variation | Orientation | Symbol Set |
| Courier | 12 pt. (10 pitch) | Medium Upright | P & L | * |
| Bold Upright | P & L | * | ||
| Medium Italic | P & L | * | ||
| 10 pt. (12 pitch) | Medium Upright | P & L | * | |
| Bold Upright | P & L | * | ||
| Medium Italic | P & L | * | ||
| Line Printer | 8.5 pt. (16.67 pitch) | Medium Upright | P & L | * |
*All Fonts are available in PC-8, Roman-8, ECMA-94, PC-850, PC-8, Danish/Norwegian, and Legal. All of these can be used with ISO sets 2, 4, 6, 10, 11, 14, 15, 16, 17, 21, 25, 57, 60, 61, 69, 84, 85, HP Spanish and HP German.
Optional Fonts
Font Test
To check fonts available in printer, take the printer off-line and press the [Print/Fonts Test] key.
Unprintable Regions
Left: 50 dots, 1/6th inch
Right: 50 dots, 1/6th inch
Top: 50 dots, 1/6th inch
Bottom: 50 dots, 1/6th inch
Continuous Feeding
Standard Trays:
Upper, continuous - 250 sheets
Lower, continuous - 250 sheets
Optional Trays: Additional Paper Size Trays

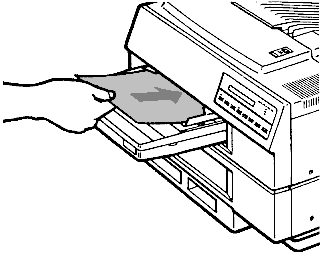

Manual Feeding
1. Adjust the manual feed guides to accept the media.
2. Insert a sheet of paper
into the top of the tray between the two manual feed guides. If
you are feeding letterhead, insert the top of the paper first,
face up.

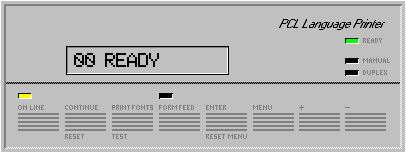

| Message | Meaning | Resolution |
| 10 RESET TO SAVE | Reminder to reset at control Panel to save configuration changes | Reset at control panel |
| 11 PAPER OUT | Tray empty or removed | Add paper or replace tray |
| 12 PRINTER OPEN | Upper body of printer open or not closed properly. | Close cover firmly |
| 13 PAPER JAM | Paper is jammed in paper path | Open printer and remove jammed paper. Press Continue |
| 14 NO EP CART | No toner cartridge or toner not seated properly | Insert toner cartridge firmly into place |
| 16 TONER LOW | EP cartridge is almost out of toner | Replace EP (toner) cartridge. |
| PF FEED [paper size] | Printer received command to manually feed a sheet of paper of [paper size] | Feed paper through manual feed guides or press Continue to override |
| PE FEED [envelope size] | Printer received command to manually feed an envelope of [envelope size] | Feed envelope through manual feed guides or press Continue to override |
| UC/LC LOAD [paper size] | Printer received a request for a papersize that does not match the Upper/Lower tray | Insert the correct tray or press continue to override. |
| UE/LE/EE LOAD [envelope size] | Printer received a request for an envelope size that does not match what is currently in the Upper/Lower/Envelope tray | Insert a tray with the envelope size or press Continue to override. |
| U/L EMPTY | Upper/Lower tray empty | Add paper |
| UE/LE/EE TRAY [envelope size] | Displayed when envelopes are added | |
| PC LOAD [paper size] | Printer received a request for a paper size that does not match the paper tray | Insert the correct paper tray or press Continue to override |
| EC LOAD [envelope size] | Printer received a request for an envelope size that does not match what is currently in the tray | Insert a tray with the correct envelope size or press Continue to override. |
| FC [slot] | Font cartridge in [slot] was removed while printer was off-line and contained data | Insert font cartridge and press Continue |
| FE CARTRIDGE | Font cartridges were removed while printer was On-Line | Turn the printer OFF and then back ON |
| 20 & 21 ERROR | Printer out of memory | Press continue. Data may be lost. Print less complicated, less soft fonts, or at a lower graphics resolution |
| 22 & 40 ERROR | Communications error | Check baud rate and protocol |
| 42 & 43 ERROR | Optional interface error | Check the optional interface |
| 41, 51, 52, 53 & 55 ERROR | Operational error | Contact HP Service |
| ## SERVICE | Service Error | Contact HP Service |
Parallel
Availability: Standard
Connection: Centronics Female
Activation: Through front panel menu
Serial
Availability: Standard
Connection: DB-25 Configured at factory for RS-232-C, RS-422A available.
Activation: Through front panel menu
