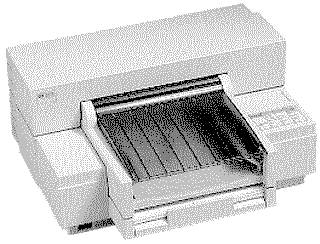

DeskJet 520/560C

Language: PCL Level 3

Speed: 167 CPS - Letter240 CPS - Draft

Memory: 512 KB, up to 2 optional 256 KB RAM cartridges can be installed for soft fonts

Graphics: 600 X 300dpi

Color: available on 560C

 FontsPaperSettingsMessagesInterfaces

Hewlett-Packard DeskJet 520/560C Fonts

Note: This printer cannot print internal or cartridge fonts when the color ink cartridge is installed. The printer can only print in graphics mode in color.

Internal Fonts

Typeface Heights Pitches Style Weight Sym. Set Orientation
Courier 6, 12 pt. 5, 10, 16.67, 20 cpi Upright Medium PC-8 Portrait
Courier 6, 12 pt. 5, 10, 16.67, 20 cpi Upright Bold PC-8 Portrait
Courier 6, 12 pt. 5, 10, 20 cpi Italic Medium PC-8 Portrait
Courier 6, 12 pt. 5, 10, 20 cpi Italic Bold PC-8 Portrait
Letter Gothic 6, 12 pt. 6, 12, 24 cpi Upright Medium PC-8 Portrait
Letter Gothic 6, 12 pt. 6, 12, 24 cpi Upright Bold PC-8 Portrait
Letter Gothic 6, 12 pt. 6, 12, 24 cpi Italic Medium PC-8 Portrait
Letter Gothic 6, 12 pt. 6, 12, 24 cpi Italic Bold PC-8 Portrait
CG Times 5, 6, 7, 8, 10, 12, 14 pt. Proportional Upright Medium PC-8 Portrait
CG Times 5, 6, 7, 8, 10, 12, 14 pt. Proportional Upright Bold PC-8 Portrait
CG Times 5, 6, 7, 8, 10, 12, 14 pt. Proportional Italic Medium PC-8 Portrait
CG Times 5, 6, 7, 8, 10, 12, 14 pt. Proportional Italic Bold PC-8 Portrait
Univers 5, 6, 7, 8, 10, 12, 14 pt. Proportional Upright Medium PC-8 Portrait
Univers 5, 6, 7, 8, 10, 12, 14 pt. Proportional Upright Bold PC-8 Portrait
Univers 5, 6, 10, 12 pt Proportional Italic Medium PC-8 Portrait
Univers 5, 6, 10, 12 pt Proportional Italic Bold PC-8 Portrait
Courier 6, 12, 24 pt. 10, 16.67, 20 cpi Upright Medium PC-8 Landscape
Courier 6, 12, 24 pt. 10, 16.67, 20 cpi Upright Bold PC-8 Landscape
Letter Gothic 6, 12, 24 pt 12, 24 cpi Upright Medium PC-8 Landscape
Letter Gothic 6, 12, 24 pt 12, 24 cpi Upright Bold PC-8 Landscape
Letter Gothic 4.75, 9.5,

19 pt

16.67 cpi Upright Medium PC-8 Landscape
Letter Gothic 4.75, 9.5,

19 pt

16.67 cpi Upright Bold PC-8 Landscape

Optional Fonts

Cartridge/Soft Fonts

Hewlett-Packard DeskJet 520/560C Cartridges/Soft Fonts

DeskJet 520/560C

Part # Description
HP22706B Prestige Elite
HP22706C Letter Gothic
HP22707L Letter Gothic/Courier Landscape
HP22706M Presentations/Letter Gothic (ASCII Only)
HP22706U Times Roman 15 and 30 pt. Headlines
HP22706V Helvetica 15 and 30 pt. Headlines
HP22706W WordPerfect Cartridge (CGTimes 6, 8, 10, 12, 14, 18, and 24 pt. and Univers 14, 18, and 24 pt.)
C2109B Global Text (CG Century Schoolbook 8 and 10 pt. and CG Triumvirate 10 and 14 pt.)
C2109C Garamond Collection 8, 10, 12, and 14 pt.
C2109D Dom Casual 12, 14, 18, and 24 pt.
C2109E Brush 12, 18, and 24 pt.

Hewlett-Packard DeskJet 520/560C Paper Handling

Unprintable Regions

Left: .25 inch

Right: .25 inch

Top: .33 inch

Bottom: .67 inch)

Continuous Feeding

Standard Feeders: One Paper Tray [capacity: 100 sheets or 20 envelopes]

1. Slide the paper width adjustment lever to the left. The paper width adjustment lever is located below the left corner of the tray.

2. Pull out the paper tray extender. The paper tray extender is located at the center front edge of the tray.

3. Take out a inch (approximately 1 cm) stack of paper (about 100 sheets) and tap the paper edge on a flat surface to even the stack.

4. Insert the stack of paper squarely into the tray, print side down. Make sure the right edge of the paper is aligned again the right wall of the tray.

5. Push the paper tray extender in toward the printer, making sure the paper does not buckle in the tray.

6. Slide the paper width adjustment lever to the right, making sure that the paper does not buckle in the tray. This will ensure that the right edge of the paper is aligned against the right wall of the tray and minimize skewed printing. If you are using US letter (8 inch x 11 inch) or US legal (8 inch x 14 inch) size paper, slide the lever back to the left.

Paper size is selected by DIP switches

Envelope Feeding

Be sure to use only No. 10 (US) or DL (European) size envelopes in your DeskJet 520/560C printer.

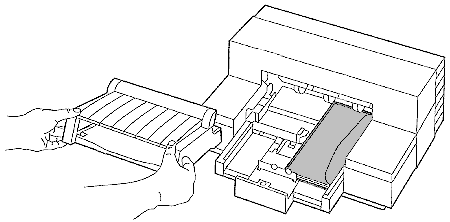

1. Remove the output tray cover and set it aside.

2. Pull out the paper tray extender and remove any media from the IN tray.

3. Slide the paper width adjustment lever to the appropriate envelope setting.

4. Remove up to 20 envelopes from their packaging and tap the short edge of the envelopes on a flat surface to even the stack.

5. Slide the envelopes evenly into the IN tray, address side down (flap side up), past the green envelope stop. Make sure the creased flap edge of the stack aligns with the right side of the printer.

6. Raise the green envelope stop.

7. Push the paper tray extender in toward the printer until it stops. Make sure the envelopes do not bend in the IN tray.

8. Close the OUT tray cover.

Hewlett-Packard DeskJet 520/560C Messages

Keypad Display Cause Solution

Ready Light is blinking The printer is out of media (paper). Load paper or media in the printer's input tray and press the STATUS button on the printer control panel.

If media is already loaded, make sure the paper tray extender is pushed in toward the printer and media is flush against the right side of the printer's input tray. Then press the Load//Eject Paper button.


Busy and Ready lights are blinking A paper jam occurred. Use the steps in "Clearing Paper Jams" in the DeskJet 520/560C User's Guide.

Busy light blinking, printer won't print in landscape orientation The printer is waiting to print. Press the Load/Eject Paper button.

All printer control panel lights are blinking alternately. The print carriage is unable to move. Make sure all packing tape was removed from the print cartridge cradle.

Turn off the printer, open the printer's top cover, and remove anything blocking the movement of the print carriage. Gently move the print carriage to the left and back again with your hand. Then, turn on the printer.

If the lights continue to blink and you have font cartridges installed, make sure the problem wasn't caused by a font cartridge failure. Remove any installed font cartridges and turn the printer off and on. If the lights continue to blink, contact HP Personal Peripherals Assist.


All control panels lights are on. The printer has hung up. Turn off the printer and computer. If the computer and printer are connected to a power strip, turn off the power strip. Turn on the printer, wait 30 seconds and turn on the computer. If nothing happens, contact HP Personal Peripherals Assist.

All printer control panel lights blink simultaneously. The printer failed an internal test. Turn the printer off and on.

If the lights continue to blink, contact HP Personal Peripherals Assist.



Hewlett-Packard DeskJet 520/560C Settings

The DeskJet 520 or 560C printer has two banks of mode function switches located on the printer's front base, under the input tray. These switches define a number of default printer settings, ranging from paper size to character sets.

To change the mode function switch settings:

1. Use a pen or pencil to flip the switches to the desired (UP or DOWN) position.

2. Press the Reset button on the printer control panel to establish these new settings.

Note: Settings that you select through your software or printer control panel will override mode function switch settings.

Settings in bold are default settings.

Bank A

Default Character Set PC-8

HP Roman 8

PC-8 Danish/Norwegian

United Kingdom (ISO 4)

Germany (ISO 21)

French (ISO 69)

Italian (ISO 15)

Norwegian v.1 (ISO 60)

Swedish Names (ICO 11)

Spanish (ISO 17)

ASCII

Portuguese (ISO 16)

PC-850

EMCA-94 Latin 1

HP Legal

Default on Front Font Cartridge

Paper/Envelope Size US Letter (8 inch x 11 inch)

European A4 (210 mm x 297 mm)

US Legal (8 inch x 14 inch)

Envelope (US #10, European DL)

Carriage Return Definition CR only

CR and LF

Perforation Skip Mode On

Off

Bank B

Text Scale Mode 63 lines/page

66 lines/page*

Ram Cartridge Definition Font Downloading

Input Buffer

*Bank B, positions 3-8 are reserved.

*Changing the Text Scale Mode setting to 66 lines/page is ignored when Perforation Mode is on.

Hewlett-Packard DeskJet 520/560C Interfaces

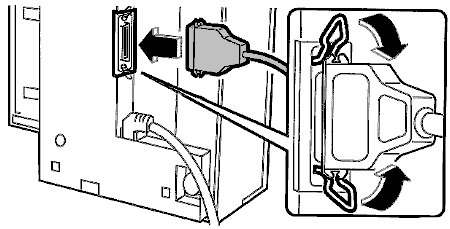

The interface connection is located on the bottom of the printer.

Parallel

Availability: Standard

Connection: Centronics Female

Activation: Automatic
