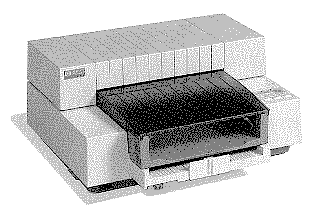

DeskJet 500C

Language: PCL Level 3

Speed: 120 cps - Letter, 240 cps - Draft

Memory: 512 KB, up to 2 optional 128 KB or 256 KB RAM cartridges can be installed for soft fonts

Graphics: 300dpi & Color

 FontsPaperSettingsMessagesInterfaces

Hewlett-Packard DeskJet 500C Fonts

Note: This printer cannot print internal or cartridge fonts when the color ink cartridge is installed. The printer can only print in graphics mode in color.

Internal Fonts

Typeface Heights Pitches Style Weight Sym. Set Orientation
Courier 6, 12 pt. 5, 10, 16.67, 20 cpi Upright Medium PC-8 Portrait
Courier 6, 12 pt. 5, 10, 16.67, 20 cpi Upright Bold PC-8 Portrait
Courier 6, 12 pt. 5, 10, 20 cpi Italic Medium PC-8 Portrait
Courier 6, 12 pt. 5, 10, 20 cpi Italic Bold PC-8 Portrait
Letter Gothic 6, 12 pt. 12, 24 cpi Upright Medium PC-8 Portrait
Letter Gothic 6, 12 pt. 12, 24 cpi Upright Bold PC-8 Portrait
Letter Gothic 6, 12 pt. 12, 24 cpi Italic Medium PC-8 Portrait
Letter Gothic 6, 12 pt. 12, 24 cpi Italic Bold PC-8 Portrait
CG Times 6, 12 pt. Proportional Upright Medium PC-8 Portrait
CG Times 6, 12 pt. Proportional Upright Bold PC-8 Portrait
CG Times 6, 12 pt. Proportional Italic Medium PC-8 Portrait
CG Times 6, 12 pt. Proportional Italic Bold PC-8 Portrait
Courier 6, 12, 24 pt. 10, 16.67, 20 cpi Upright Medium PC-8 Landscape
Courier 6, 12, 24 pt. 10, 16.67, 20 cpi Upright Bold PC-8 Landscape

Optional Fonts

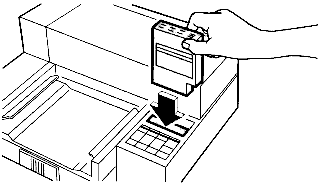

Cartridge/Soft Fonts

Hewlett-Packard DeskJet 500C Paper Handling

Unprintable Regions

Left: 75 dots ( inch)

Right: 75 dots ( inch)

Top: 75 dots ( inch)

Bottom: 150 dots ( inch)

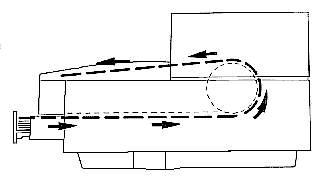

Continuous Feeding

Standard Feeders: One Paper Tray [capacity: 100 sheets]

1. Slide the paper width adjustment lever to the left. The paper width adjustment lever is located below the left corner of the tray.

2. Pull out the paper tray extender. The paper tray extender is located at the center front edge of the tray.

3. Take out a inch (approximately 1 cm) stack of paper (about 100 sheets) and tap the paper edge on a flat surface to even the stack.

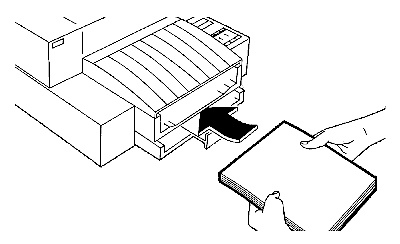

4. Insert the stack of paper squarely into the tray, print side down. Make sure the right edge of the paper is aligned again the right wall of the tray.

5. Push the paper tray extender in toward the printer, making sure the paper does not buckle in the tray.

6. Slide the paper width adjustment lever to the right, making sure that the paper does not buckle in the tray. This will ensure that the right edge of the paper is aligned against the right wall of the tray and minimize skewed printing. If you are using US letter (8 inch x 11 inch) or US legal (8 inch x 14 inch) size paper, slide the lever back to the left.

Paper size is selected by DIP switches

Envelope Feeding

Envelopes are manually loaded, one at a time, through the envelope guides located in the printer output tray. Be sure to use only No. 10 (US) or DL (European) size envelopes in your DeskJet 500C printer.

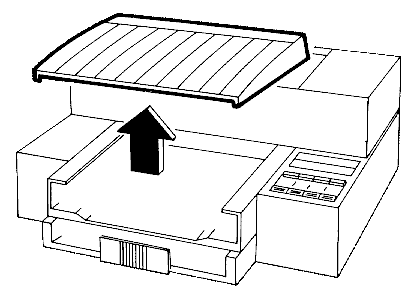

1. Remove the output tray cover and set it aside.

2. Remove any paper from the output tray.

3. Hold the envelope with the flap side facing up.

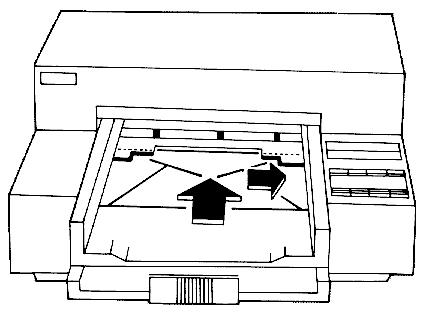

4. Flex the envelope gently at the middle, slip it under the output tray wings, and set it, head first, into the output tray.

5. With the right side of the envelope flush against the right side of the output tray, push the envelope forwards, under the envelope guides and then under the paper feed rollers until the envelope stops.

6. Press the [ENVELOPE] button.

Hewlett-Packard DeskJet 500C Messages

Keypad Display Cause Solution

Ready Light is blinking The printer is out of media (paper). Load paper or media in the printer's input tray and press the [STATUS] button on the printer control panel.

If media is already loaded, make sure the paper tray extender is pushed in toward the printer and media is flush against the right side of the printer's input tray


Busy and Ready lights are blinking A paper jam occurred. Use the steps in "Clearing Paper Jams" in the DeskJet 500C User's Guide.

Busy light blinking, printer won't print in landscape orientation The printer is waiting to print. Press the Load/Eject button.

All printer control panel lights are blinking alternately. The print carriage is unable to move. Make sure all packing tape was removed from the print cartridge cradle.

Turn off the printer, open the printer's top cover, and remove anything blocking the movement of the print carriage. Gently move the print carriage to the left and back again with your hand. Then, turn on the printer.

If the lights continue to blink and you have font cartridges installed, make sure the problem wasn't caused by a font cartridge failure. Remove any installed font cartridges and turn the printer off and on. If the lights continue to blink, contact HP Personal Peripherals Assist.


Change Cartridge and Busy lights are blinking The print cartridge contacts and print cartridge cradle contacts need to be brushed. Brush the contacts as described in "Brushing the Print Cartridge Contacts" in the DeskJet 500C User's Guide.

Draft and Change Cartridge lights are blinking alternately with Portrait, Landscape, Compress, Busy and Ready Lights. A problem with an installed font cartridge occurred. Remove any font cartridges installed in the printer and turn the printer off and on. If the lights continue to blink without font cartridges installed, contact HP Personal Peripherals Assist.

All control panels lights are on. The printer has hung up. Turn off the printer and computer. If the computer and printer are connected to a power strip, turn off the power strip. Turn on the printer, wait 30 seconds and turn on the computer. If nothing happens, contact HP Personal Peripherals Assist.

All printer control panel lights blink simultaneously. The printer failed an internal test. Turn the printer off and on.

If the lights continue to blink, contact HP Personal Peripherals Assist.


Change Cartridge light is blinking, print carriage has moved to the center of the printer. The printer is waiting for you to change the print cartridge. Change the print cartridge and press the [PRINT CARTRIDGE] button.

Change Cartridge light is blinking, print carriage is in "home" position. The printer is waiting for you to change the print cartridge. The printer carriage moves to the center when you press the [PRINT CARTRIDGE] button on the printer control panel. If the print cartridge is not changed within 5 minutes, the print carriage returns to the "home" position and the Change Cartridge light blinks.

Press the [PRINT CARTRIDGE] button, change the print cartridge, and press the [PRINT CARTRIDGE] button again to return the print carriage to the "home" position.


Portrait and Landscape, lights are blinking alternately with Compress, Ready, Busy, Change Cartridge, and Draft lights. The printer has detected a problem with an installed RAM cartridge. Remove any installed RAM cartridges and turn the printer off and on. If the lights continue to blink, contact HP Personal Peripherals Assist.

Portrait, Landscape, Busy, and Change cartridge lights are blinking alternately with Compress, Ready, and Draft lights. An emulation cartridge is installed in the printer. The DeskJet 500C printer does not support the use of emulation cartridges. Remove the emulation cartridge and turn the printer off and on. If the lights continue to blink, contact HP Personal Peripherals Assist.

Hewlett-Packard DeskJet 500C Settings

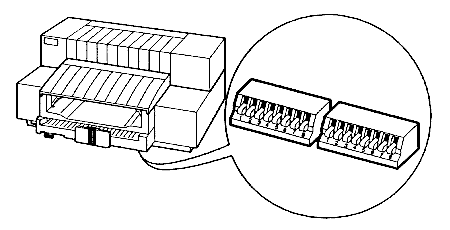

The DeskJet 500C printer has two banks of mode function switches located on the printer's fron base, under the input tray. These switches define a number of default printer settings, ranging from paper size to data communications settings for an RS-232C serial interface connection.

To change the mode function switch settings, use a pen or pencil to flip the switches to the desired (UP or DOWN) position.

Note: Settings that you select through your software or printer control panel will override mode function switch settings.

Settings in bold are default settings.

Bank A

Default Character Set PC-8

HP Roman 8

PC-8 Danish/Norwegian

United Kingdom (ISO 4)

Germany (ISO 21)

French (ISO 69)

Italian (ISO 15)

Norwegian v.1 (ISO 60)

Swedish Names (ICO 11)

Spanish (ISO 17)

ASCII

Portuguese (ISO 16)

PC-850

EMCA-94 Latin 1

HP Legal

Default on Front Font Cartridge

Paper/Envelope Size US Letter (8 inch x 11 inch)

European A4 (210 mm x 297 mm)

US Legal (8 inch x 14 inch)

Envelope (US #10, European DL)

Carriage Return Definition CR. only

CR. and LF

Perforation Skip Mode On

Off

Bank B

Text Scale Mode 63 lines/page

66 lines/page*

Graphics Density 75 DPI

300 DPI

Terminal Mode Disabled

Enabled

RS-232C Baud Rate 9600 Baud

19200 Baud

2400 Baud

1200 Baud

RS-232C Parity and No Parity, 8 Data Bits

Word Length Odd Parity, 7 Data Bits

Even Parity, 7 Data Bits

No Parity, 8 Data Bits

RS-232C Handshaking DTR & XON/XOFF

DTR Only

*Changing the Text Scale Mode setting to 66 lines/page is ignored when Perforation Mode is on.

Hewlett-Packard DeskJet 500C Interfaces

The interface connections are located on the bottom of the printer.

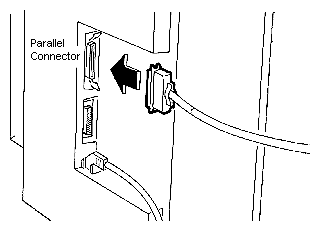

Parallel

Availability: Standard

Connection: Centronics Female

Activation: Automatic

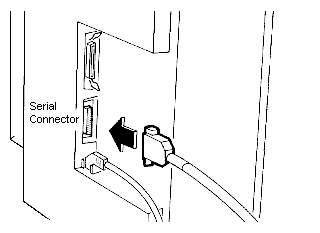

Serial

Availability: Standard

Connection: DB-25 RS-232-C.

Activation: Automatic
