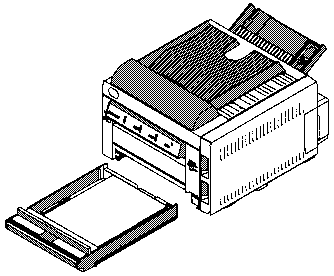

LaserPrinter 4019 LaserPrinter 4019 | Language:
PCL Level 4, IBM Proprinter, IBM QuietWriter III Optional: PostScript Speed: 10ppm Memory: 512KB, exp. to 4MB Graphics: 300, 150, 75dpi Autorotate: Yes Duplex: Not Available RET: Not Available |
Fonts Per Page: 16 (Each attribute is a separate font)
Internal Fonts (IBM ASCII mode)
| Typeface | Size | Variation | Orientation | Symbol Set |
| Courier | 8.5 pt. (17.1 pitch) | Medium Upright | P & L | Roman-8 |
| 10 pt. (12 pitch) | Medium Upright | P & L | Roman-8 | |
| 12 pt. (10 pitch) | Medium Upright | P & L | Roman-8 | |
| Bold Upright | P & L | Roman-8 | ||
| Boldface PS | 12 pt. (10 pitch) | Bold Upright | P & L | Roman-8 |
Internal Fonts (HP LaserJet mode)
| Typeface | Size | Variation | Orientation | Symbol Set |
| Courier | 12 pt. (10 pitch) | Medium Upright | P & L | Roman-8 |
| PC-8 | ||||
| ECMA-94 | ||||
| IBM-DN | ||||
| Bold Upright | P & L | Roman-8 | ||
| PC-8 | ||||
| ECMA-94 | ||||
| IBM-DN | ||||
| 8.5 pt. (17.1 pitch) | Medium Upright | P & L | Roman-8 | |
| PC-8 | ||||
| ECMA-94 | ||||
| IBM-DN |
Internal Fonts (Postscript mode)
| Typeface | Size | Variation | Orientation | Symbol Set |
| Courier | Scalable | Medium Upright | P & L | Adobe PS |
| Bold Upright | P & L | Adobe PS | ||
| Medium Italic | P & L | Adobe PS | ||
| Bold Italic | P & L | Adobe PS | ||
| Helvetica | Scalable | Medium Upright | P & L | Adobe PS |
| Bold Upright | P & L | Adobe PS | ||
| Medium Oblique | P & L | Adobe PS | ||
| Bold Oblique | P & L | Adobe PS | ||
| Helvetica Narrow | Scalable | Medium Upright | P & L | Adobe PS |
| Bold Upright | P & L | Adobe PS | ||
| Medium Oblique | P & L | Adobe PS | ||
| Bold Oblique | P & L | Adobe PS | ||
| Times | Scalable | Medium Upright | P & L | Adobe PS |
| Bold Upright | P & L | Adobe PS | ||
| Medium Italic | P & L | Adobe PS | ||
| Bold Italic | P & L | Adobe PS | ||
| Symbol | Scalable | Medium Upright | P & L | Adobe PS |
| Bold Upright | P & L | Adobe PS | ||
| Medium Italic | P & L | Adobe PS | ||
| Bold Italic | P & L | Adobe PS |
Optional Fonts
Font Test
To check fonts available in printer, Make sure the Buffer light is off and the Ready light is on. Press and hold the Orientation button; then press and release the Font button.
To determine what mode the printer is in, press the Orientation button when the printer is on-line. One of the following numbers will appear in the status window.
| Number | Description |
| 1 | IBM ASCII mode |
| 2 | HP Emulation mode |
| 3 | Plotter Emulation mode |
| 8 | PostScript mode |
Unprintable Regions (portrait)
Left: 0.25 inch
Right: 0.25 inch
Top 0.33 inch
Bottom 0.16 inch
Continuous Feeding
Trays: One Continuous Tray (200 sheets)
One Manual Tray
Optional Trays: Additional Paper Size Trays and Envelope Feeder Available from IBM
Manual Feeding
Through adjustable manual feed guides on the manual tray.
Restoring Factory Default Settings
1. Turn the printer off.
2. Press and hold the Start/Start and Print/Check buttons together as you turn the printer on.
| Message | Meaning | Resolution |
| 1 | Printer cover is open. | Close cover. |
| Print cartridge incorrectly installed or not installed | Install correctly | |
| 2 | Paper error | Press Print/Check, note display |
| 1 Paper out/feed failure | Make sure paper is correctly loaded. make sure feed rollers are not jammed. Press Start/Stop | |
| 2 Paper Jam | See "Problem Determination" in the Printer Guide to Operations | |
| 3 Wrong paper length | Verify active paper size is large enough for the formatted data. | |
| 4 Invalid Manual Feed | Press Start/Stop | |
| 3 | Load paper request | Press Print/Check, load size indicated. |
| 4 | Font error | Press Print/Check, note display |
| 1 Requested position not present. Font requested by set font global command. | Install card or download the font. Press Start/Stop. If requested font not available, press Start/Stop. | |
| 2 Requested font not present. Font requested by set font global command. | Install card containing requested font. If not available, press Start/Stop. | |
| 3 Font card removed | Reinstall the card. If not available, press Start/Stop | |
| 4 Defective font card | Replace
card or choose resident or download font to continue
printing. if 4 remains, press Print/Check: 1 Follow steps for Font error 1. 2 Follow steps for Font error 2. |
|
| 5 Download error/Font header or ID | Press Start/Stop | |
| 6 Download error/Character header | Press Start/Stop | |
| 7 Unsupported Card | Remove card Press Start/Stop | |
| 5 | Stop command | Press Start/Stop twice |
| 6 | Memory error | Press Print/Check, note display |
| 1 Memory exceeded | Press Start/Stop | |
| 2 Complexity error | Press Start/Stop | |
| 7 | Default storage | Press Start/Stop. Have your printer serviced. |
| 8 | Reserved | Cancel job from computer; reset printer. |
| 9 | Service Error Code | Press Print/Check, note service error code shown below. Call service |
Parallel
Availability: Standard
Connection: Centronics Female
Activation: Through front panel. See page 10-4 of the IBM LaserPrinter Guide to Operations Manual.
Serial
Availability: Standard
Connection: IBM serial cable P/N 6486685.
Activation: Through front panel. See page 10-5 of the IBM LaserPrinter Guide to Operations Manual.
